Behavior Health Access Doors

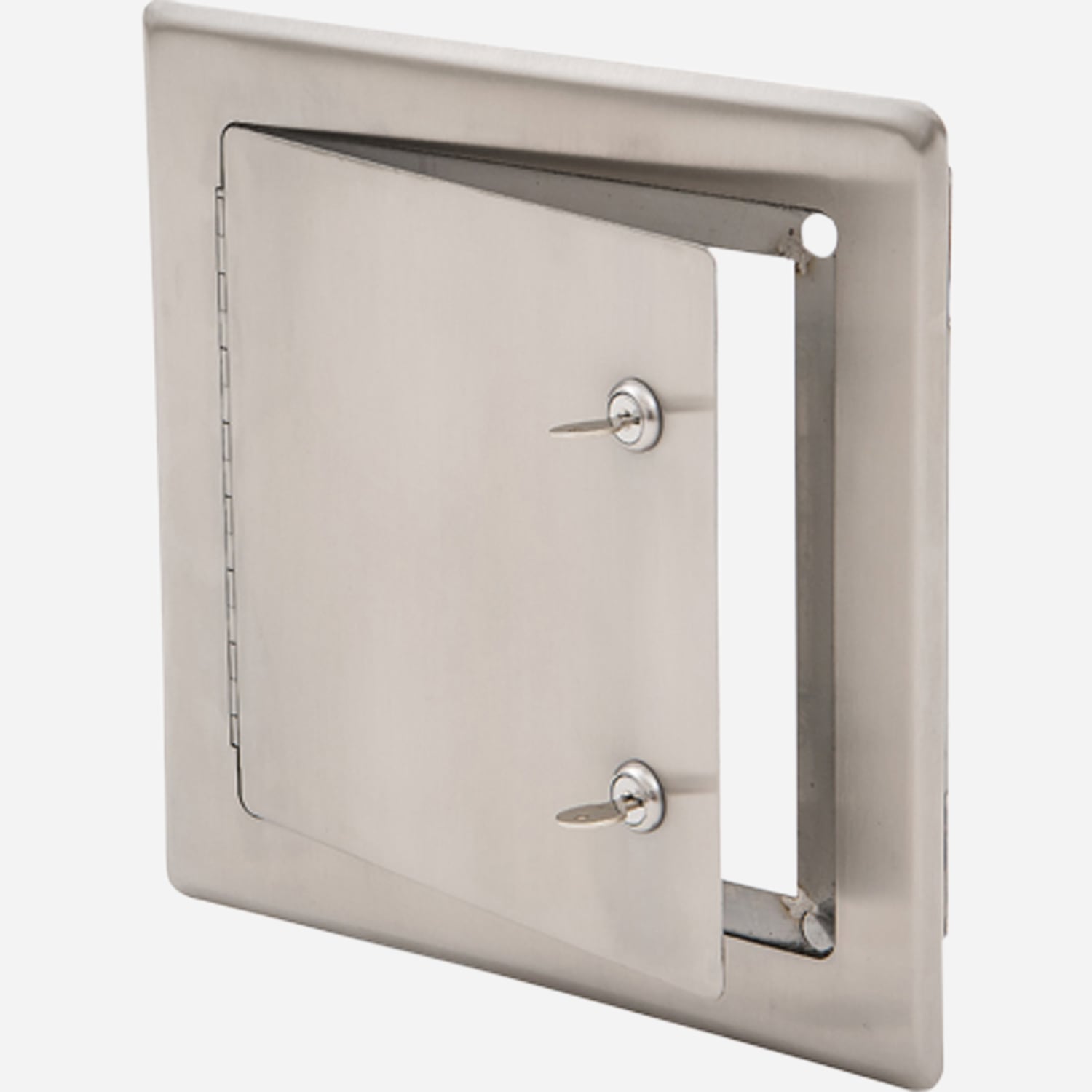

Behavioral Health Access Doors provides an easy access to valves, controls, piping and equipment. The access door is ideal for ligature-resistant applications as it presents a reduced possibility of being used as a suicide device.
Door and Frame are fabricated from 16 gauge, type 304 stainless steel with exposed surfaces polished to a satin finish or powder coated white.

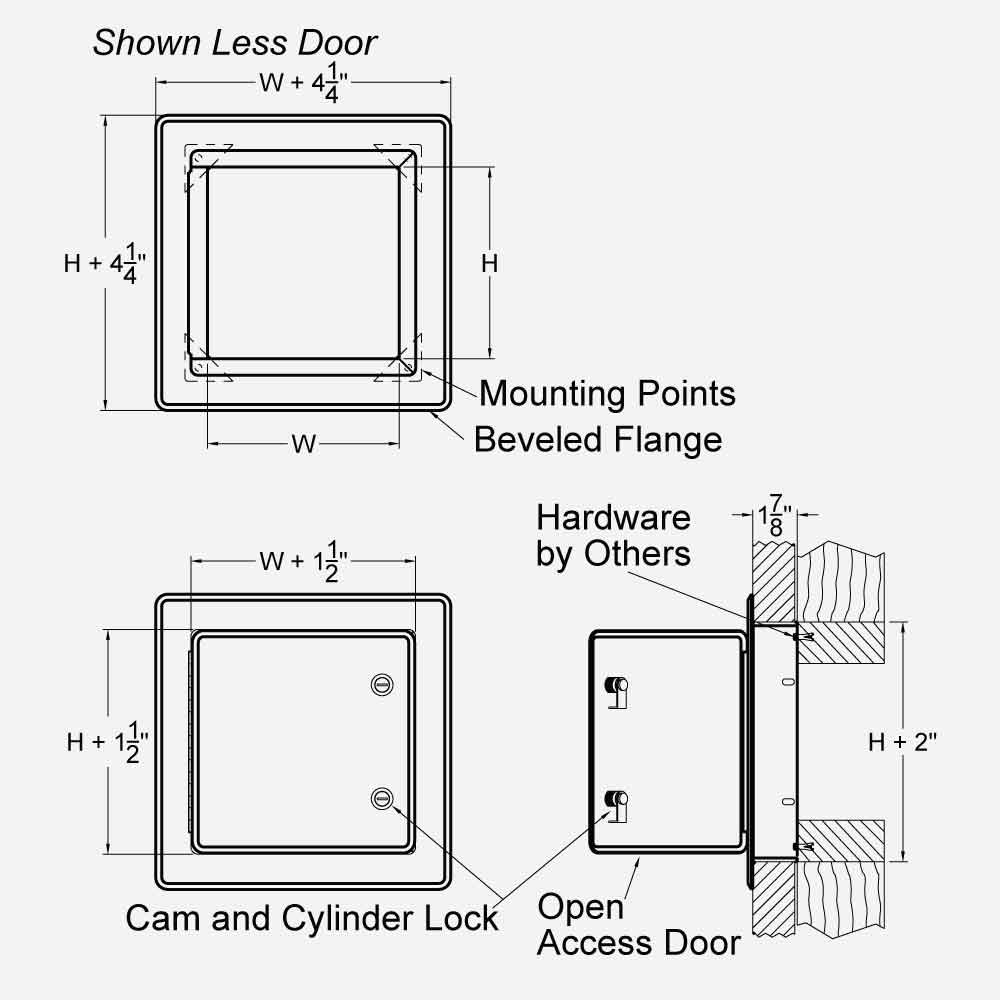

Door includes two (2) cam and cylinder locks with two (2) keys. Concealed hinge is mounted in heavy, reinforcing channel and allows the door to open a full 150°.
DISCLAIMER:This product is designed to decrease the probability that it may be utilized as an apparatus for ligature. It is not a replacement for professionals who are trained in the proper evaluation, management and supervision of persons at risk of suicide.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Behavioral Health Access Doors - 8", 12", 14", 18", 24" Nominal Door Size - White Powder Coated or All-Stainless Steel | 0 | 151 KB |
Specifications
| Brand | Elmdor |
| Material | Stainless Steel, White Powder Coat |
| Latching System | Cylinder Key Lock (Option -CL) |
| Mount | Wall Mount |
| Additional Benefits | Ligature-Resistant, High Vandal Resistance |
Models
Typical models are shown below
BH8X8PC-CL Nominal Door Size 8" (Width) x 8" (Height) Finish: Powder Coated White Rough Opening: 10-1/4" x 10-1/4" Weight: 6 lbs All-Stainless Steel Model: BH8X8PC-CL-SS
BH12X12PC-CL Nominal Door Size 12" (Width) x 12" (Height) Finish: Powder Coated White Rough Opening: 14-1/4" x 14-1/4" Weight: 9 lbs All-Stainless Steel Model: BH12X12PC-CL-SS
BH14X14PC-CL Nominal Door Size 14" (Width) x 14" (Height) Finish: Powder Coated White Rough Opening: 16-1/4" x 16-1/4" Weight: 11 lbs All-Stainless Steel Model: BH14X14PC-CL-SS
BH18X18PC-CL Nominal Door Size 8" (Width) x 8" (Height) Finish: Powder Coated White Rough Opening: 20-1/4" x 20-1/4" Weight: 15 lbs All-Stainless Steel Model: BH18X18PC-CL-SS
BH24X24PC-CL Nominal Door Size 24" (Width) x 24" (Height) Finish: Powder Coated White Rough Opening: 26-1/4" x 26-1/4" Weight: 20 lbs All-Stainless Steel Model: BH24X24PC-CL-SS
