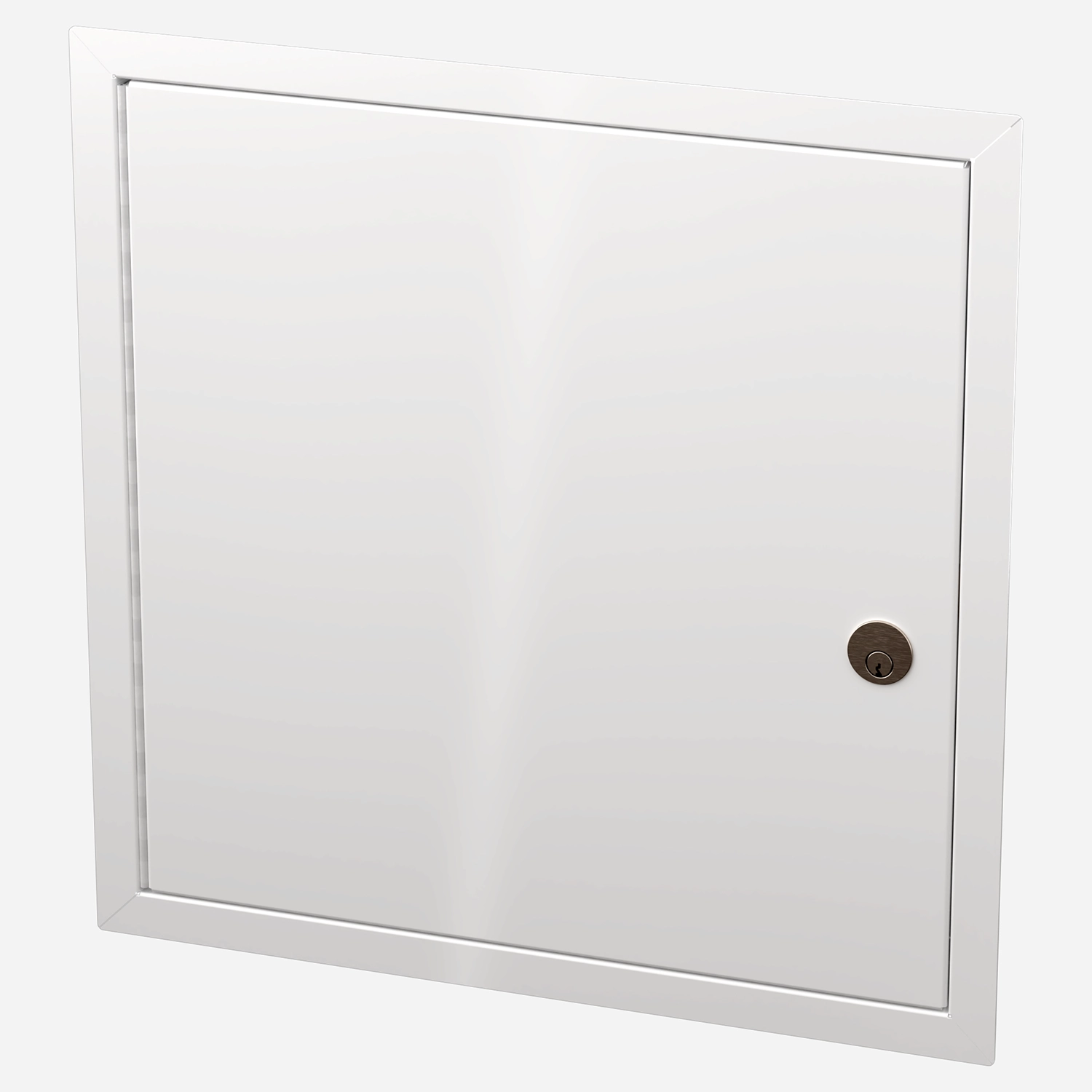

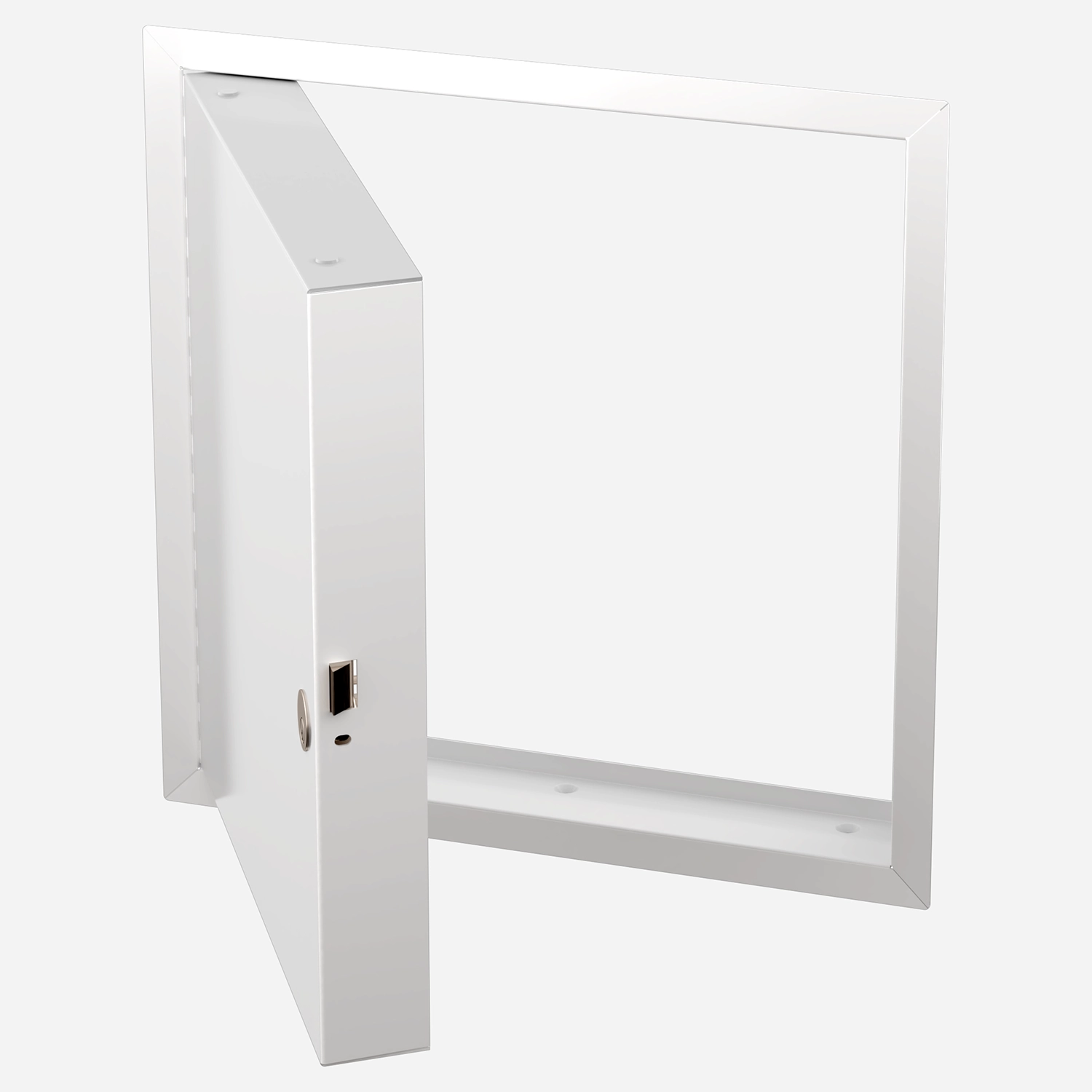

Draft Stop Access Door
Draft Stop Access Door is a non-fire-rated access door designed to provide access through a draft-stop space in the attic while preventing a backdraft from one section of the attic to another.
Door and Frame are fabricated from 16-gauge, galvannealed steel with a white prime coat finish.

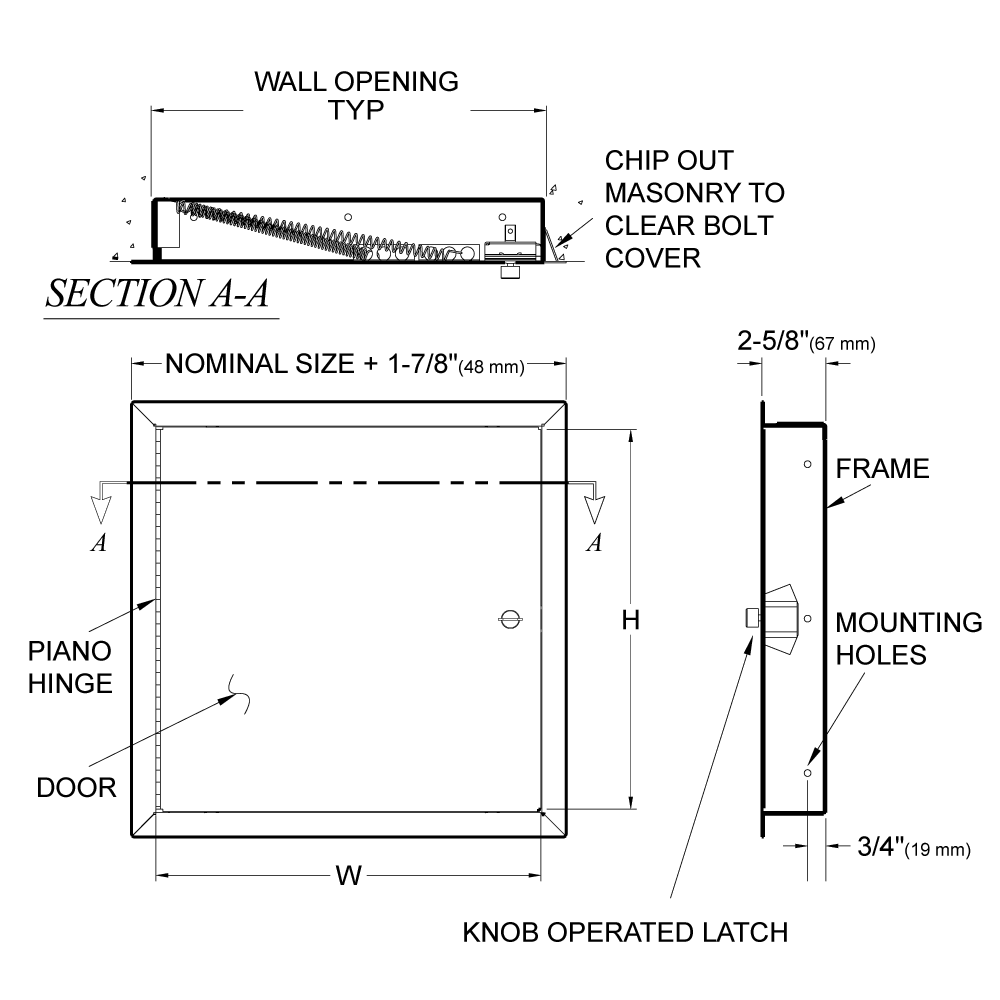

The frame is a one-piece construction. The wall frame is provided with 1/4" mounting holes for fastening within the furred spaces, allowing faster installation and fixing maximum clearance.
Concealed Pivoting Rod Hinge prevents distortion and closes the door squarely.

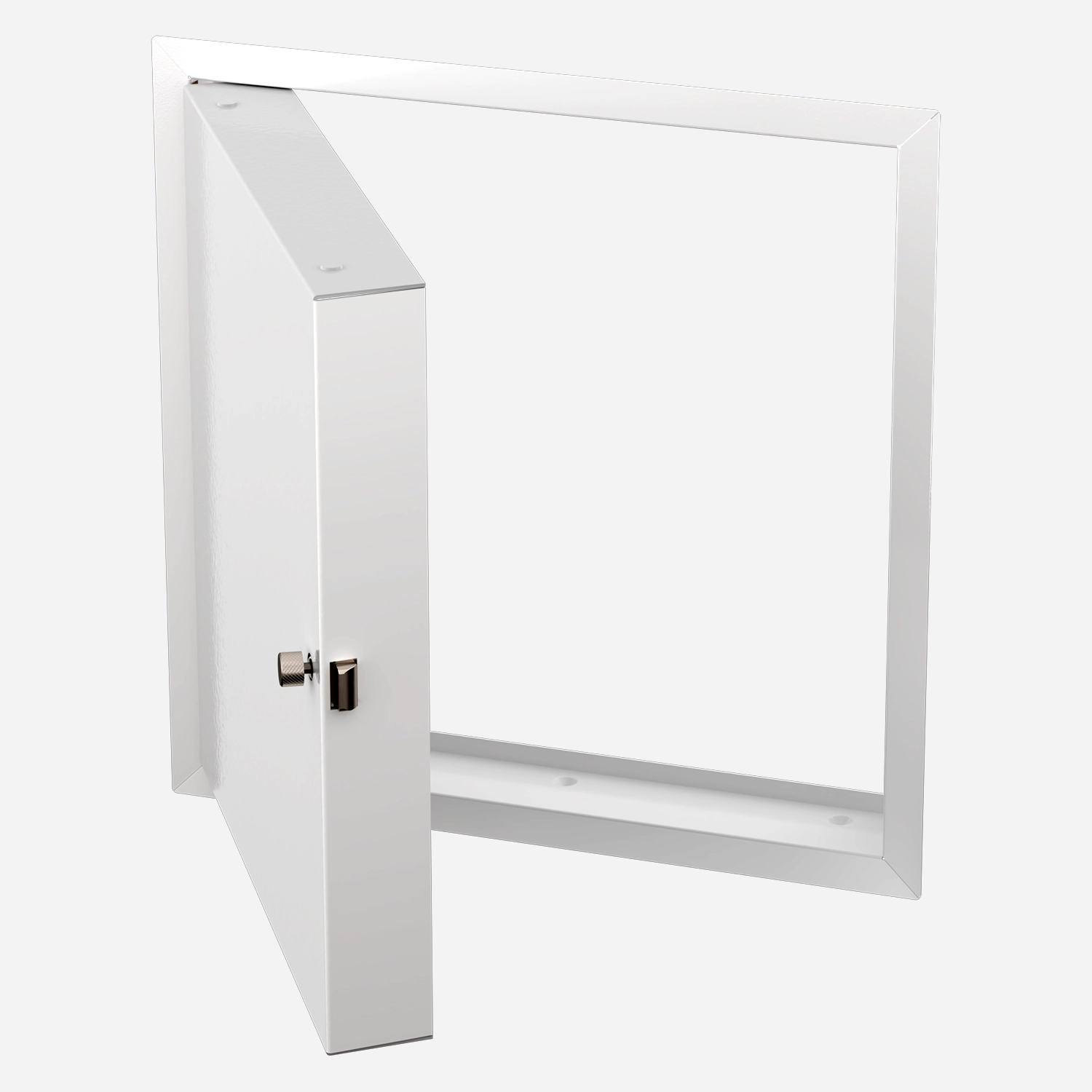

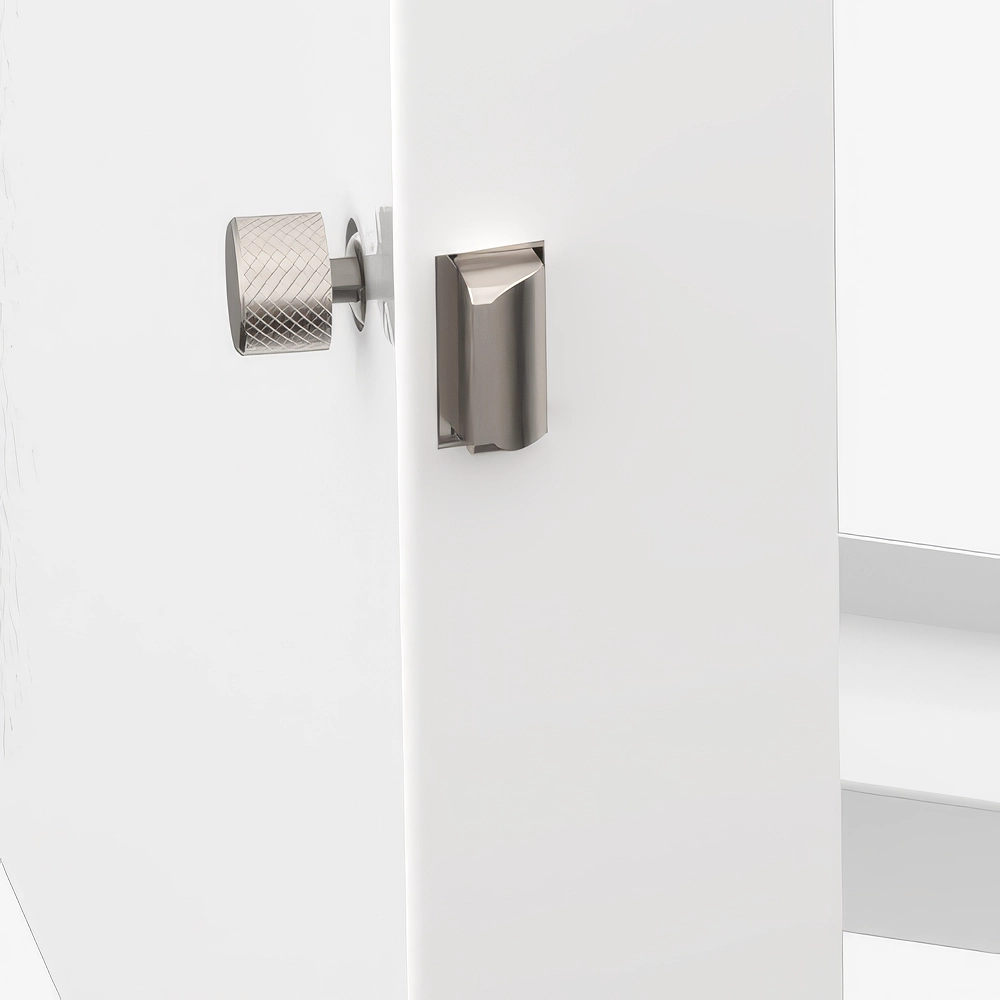

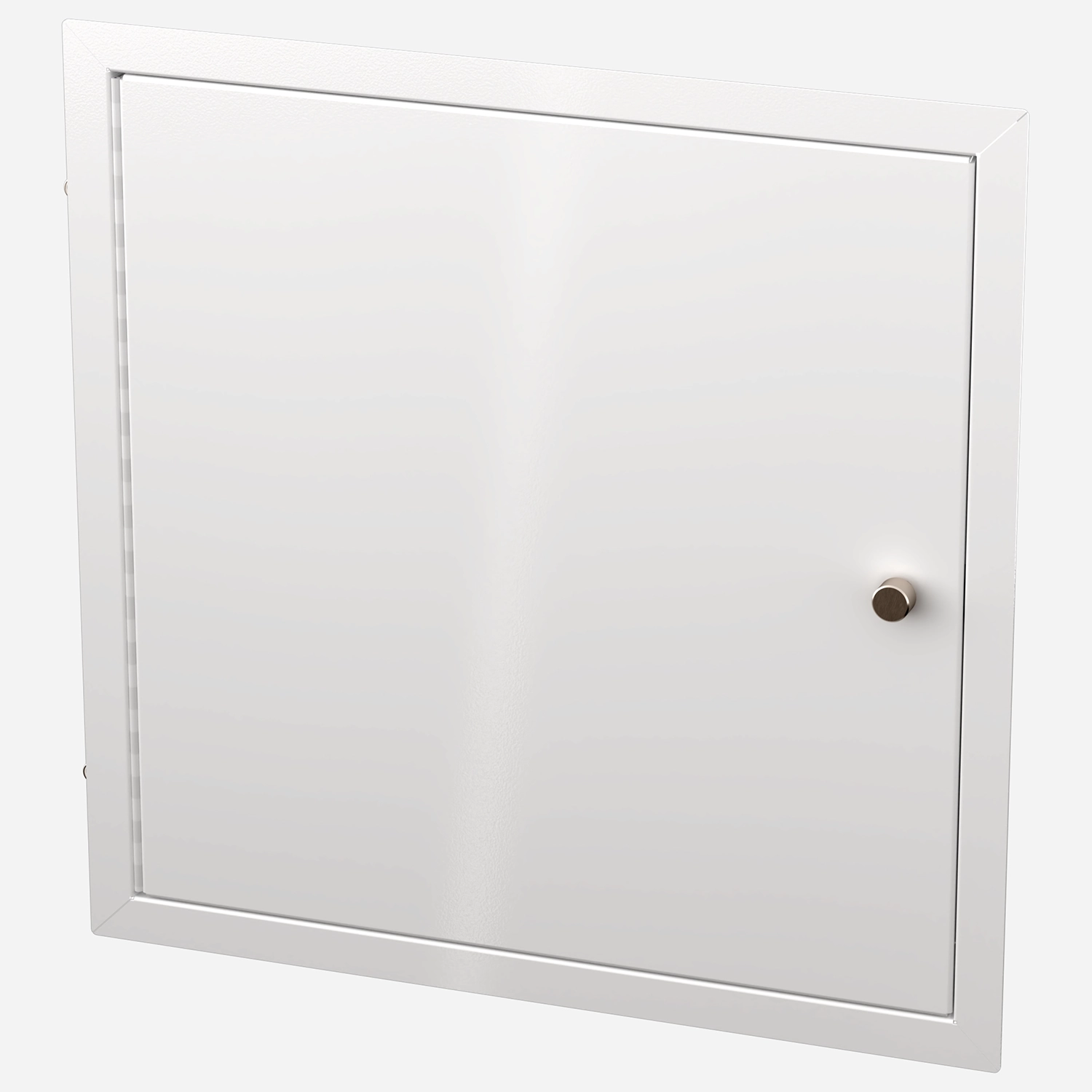

Latch is operated with a knurled knob
Finish is a white prime coat
9 standard sizes are available
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | Draft Stop Access Doors [ DS 12" x 12", DS 16" x 16", DS 18" x 18", DS 22" x 30", DS 22" x 36", DS 24" x 24", DS 24" x 36", DS 24" x 40", DS 24" x 48"] | 210 KB |
Specifications
| Brand | Elmdor |
| Mount | Wall Mount |
| Material | Galvannealed Steel |
| Latching System | Knurled Knob |
Models
| Model |
Nominal Door Size |
Wall Opening |
Frame |
Latches | |
| DS12X12 | 12 x 12 (305 x 305) |
12-1/4 x 12-1/4 (311 x 311) |
13-7/8 x 13-7/8 x 2-5/8 (352 x 352 x 67) |
1 | |
| DS16X16 | 16 x 16 (406 x 406) |
16-1/4 x 16-1/4 (413 x 413) |
17-7/8 x 17-7/8 x 2-5/8 (454 x 454 x 67) |
1 | |
| DS18X18 | 18 x 18 (457 x 457) |
18-1/4 x 18-1/4 (464 x 464) |
19-7/8 x 19-7/8 x 2-5/8 (505 x 505 x 67) | 1 | |
| DS22X30 | 22 x 30 (559 x 762) |
22-1/4 x 30-1/4 (565 x 768) |
23-7/8 x 31-7/8 x 2-5/8 (606 x 810 x 67) | 2 | |
| DS22X36 | 22 x 36 (559 x 914) |
22-1/4 x 36-1/4 (565 x 921) |
23-7/8 x 37-7/8 x 2-5/8 (606 x 962 x 67) | 2 | |
| DS24X24 | 24 x 24 (610 x 610) |
24-1/4 x 24-1/4 (616 x 616) |
25-7/8 x 25-7/8 x 2-5/8 (657 x 657 x 67) | 1 | |
| DS24X36 | 24 x 36 (610 x 914) |
24-1/4 x 36-1/4 (616 x 921) |
25-7/8 x 37-7/8 x 2-5/8 (657 x 962 x 67) | 2 | |
| DS24X40 | 24 x 40 (610 x 1016) |
24-1/4 x 40-1/4 (616 x 1022) |
25-7/8 x 41-7/8 x 2-5/8 (657 x 1064 x 67) | 2 | |
| DS24X48 | 24 x 48 (610 x 1219) |
24-1/4 x 48-1/4 (616 x 1226) |
25-7/8 x 49-7/8 x 2-5/8 (657 x 1267 x 67) | 2 |
