Name: Drywall Access Panels
Brand: Elmdor
SKU: DW Series

Model DW Series

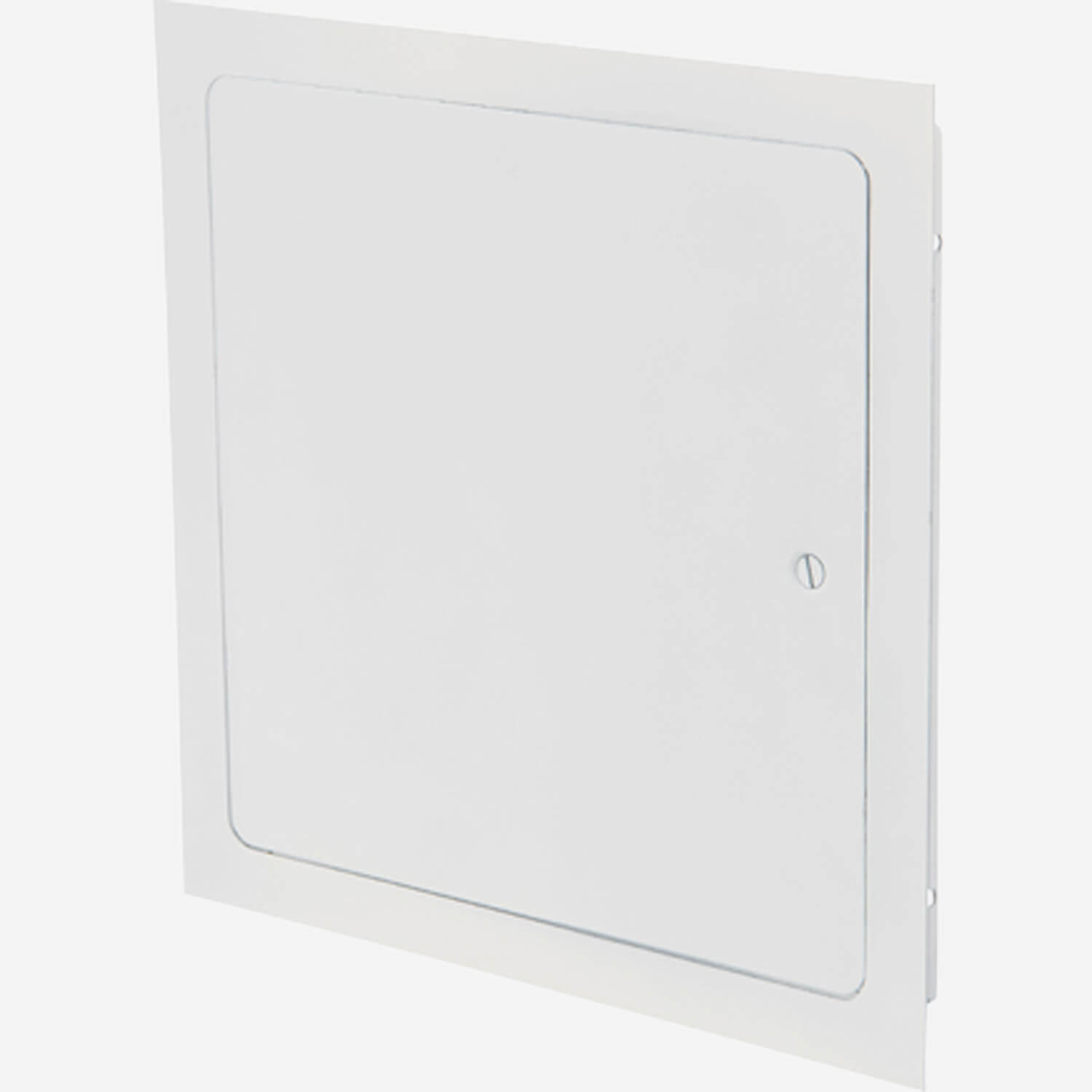

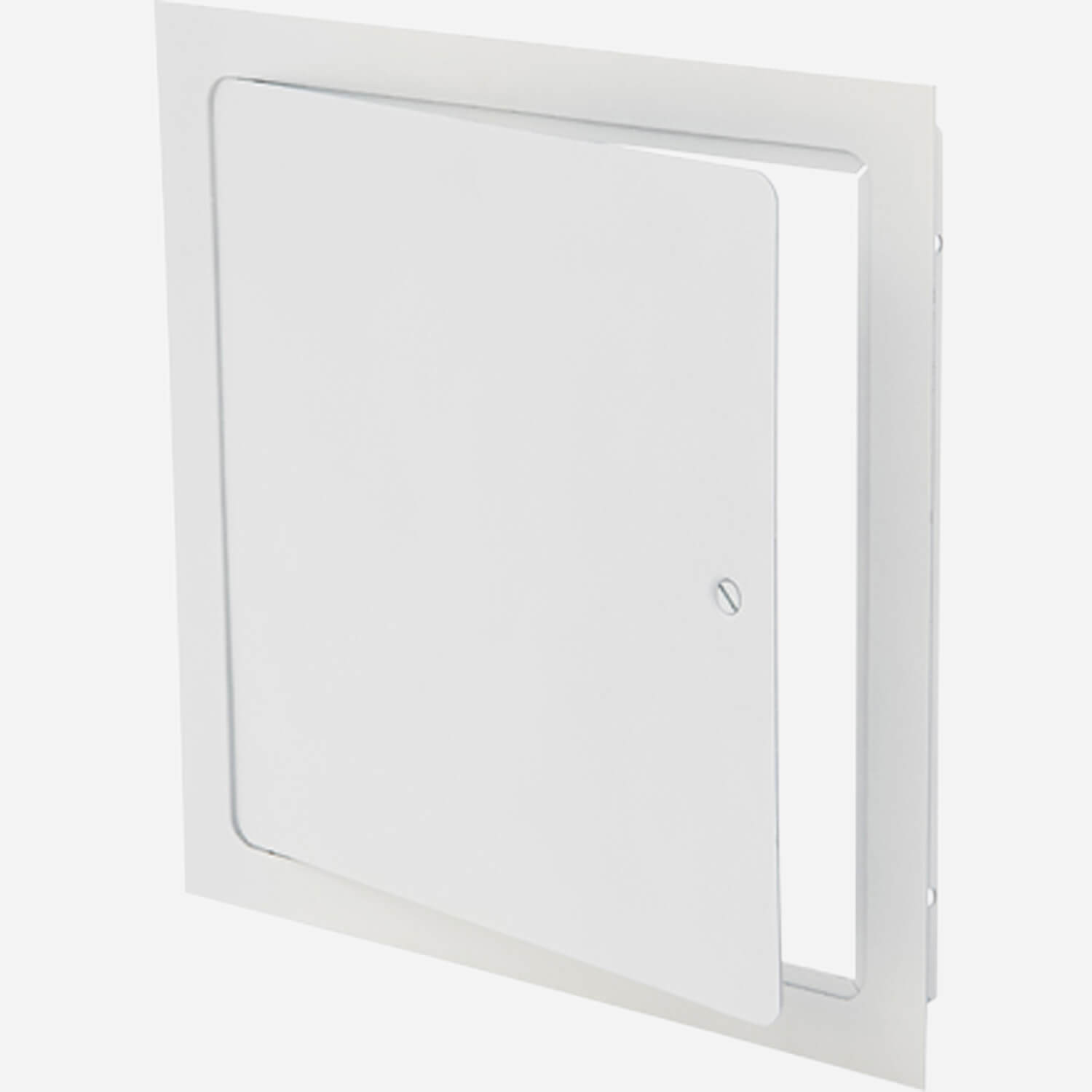

Drywall Access Panels

Elmdor drywall access panels and frames are ideally suited for new installation or renovation and may be used with masonry, tile, wood, and other wall and ceiling surfaces.

DW Series drywall access doors include the following features:

16-gauge, galvannealed steel construction with white prime coat finish suitable for painting
Rounded safety corners
Concealed piano hinge
One-piece frame with no miters or welds on the face
Screwdriver-operated latch

A heavy-duty version is also available with a 14-gauge door and door frame and a 16-gauge wall frame.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Submittals	Submittal DW Series Door, 16-Gauge (pdf)	Standard, 16-gauge galvannealed steel drywall access door	161 KB
Submittals	Submittal DW14 Series Door, 14-Gauge (pdf)	Heavy-duty, 14-gauge galvannealed steel drywall access door	157 KB
Brochures/Flyers	Kwik Ship® Brands: Brochure (pdf)	Kwik Ship Brands are a new way to order products. These standardized items are stocked locally, replenished weekly, and available for quick delivery, ensuring you get what you need with minimal delay.	7 MB
Brochures/Flyers	Kwik Ship® Brands: Commercial Engineering Approval Form	Kwik Ship® Brands: Commercial Engineering Approval Form	2 MB
Brochures/Flyers	Elmdor Access Doors Flyer (pdf)	Elmdor Access Doors Flyer (pdf)	399 KB
Brochures/Flyers	Kwik Ship® Brands: Elmdor (pdf)	Kwik Ship® Brands: Elmdor (pdf)	1 MB
Brochures/Flyers	MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	27 MB
Brochures/Flyers	MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	718 KB
Catalog	Elmdor Submittal Field Reference Guide (pdf)	Submittal Field Reference Guide for Elmdor Access Doors Roof Hatches	3 MB
Brochures/Flyers	Elmdor Access Doors Product Brochure (pdf)	Elmdor Access Door Brochure	43 MB
Cross References	Elmdor Kwik Ship® Visual Competitive Cross Ref - Access Doors (pdf)	Elmdor Kwik-Ship® Access Doors vs Acudor, Karp, Cendrex [DW_PC-SDL, DW_SS-SDL, DWB_PC-SDL, FR_PC-RTL, FRC_PC-DUL, Options AKL, CL, CLD, GB, MAS, MLP, TH] L1001782 7/2026	357 KB
BIM/CAD/Revit	DW Series Access Doors (rfa/zip)	Dry Wall Access Doors [DW8x8PC-SDL, DW8x8SS-SDL, DW10x10PC-SDL, DW12x12PC-CL, DW12x12PC-SDL, DW12x12SS-SDL, DW14x14PC-SDL, DW16x16PC-SDL, DW18x18PC-SDL, DW24x24PC-SDL]	2 MB
BIM/CAD/Revit	DW Series Access Doors (dwg/zip)	Dry Wall Access Doors [DW8x8PC-SDL, DW8x8SS-SDL, DW10x10PC-SDL, DW12x12PC-CL, DW12x12PC-SDL, DW12x12SS-SDL, DW14x14PC-SDL, DW16x16PC-SDL, DW18x18PC-SDL, DW24x24PC-SDL]	803 KB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Brand	Elmdor
Mount	Wall Mount, Ceiling Mount

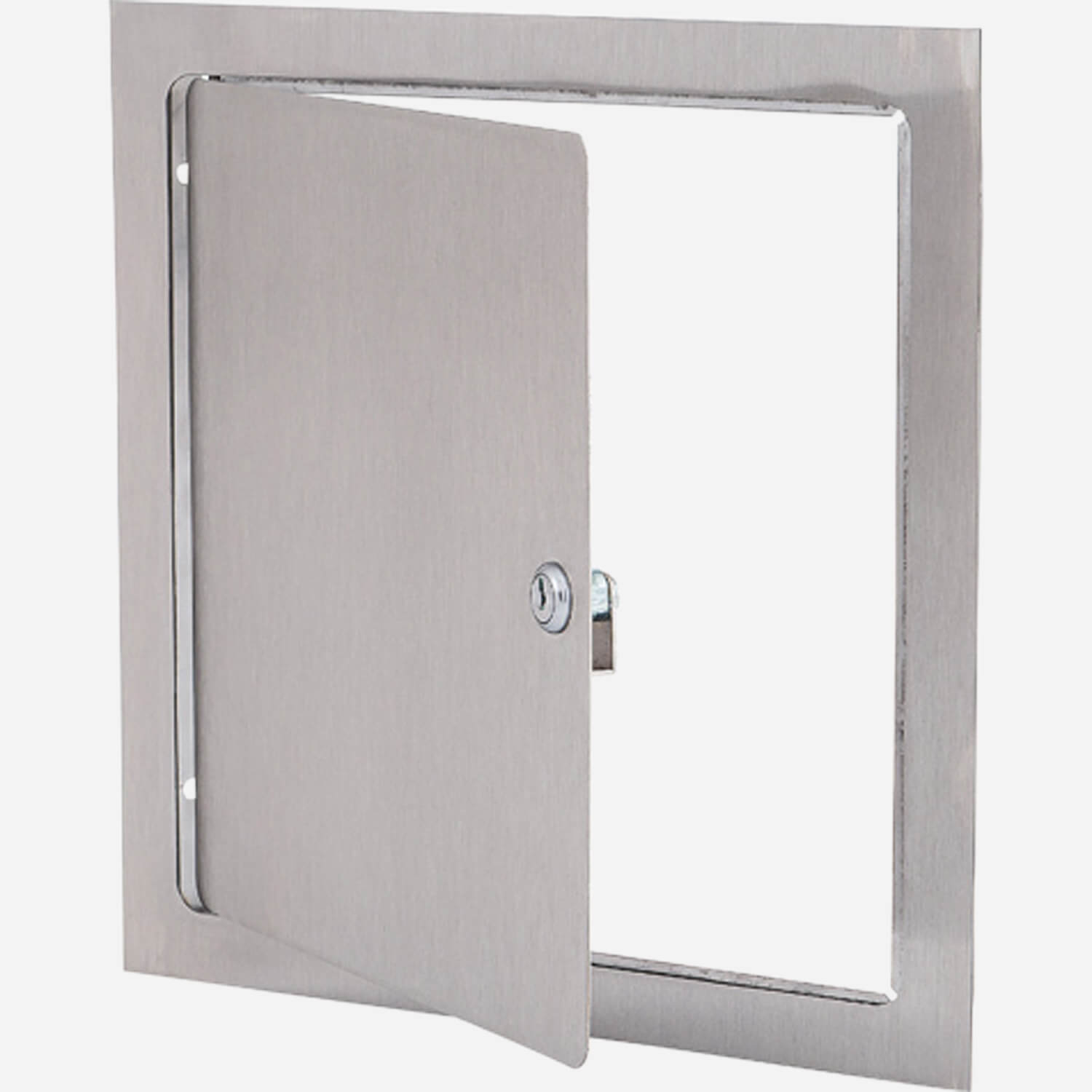

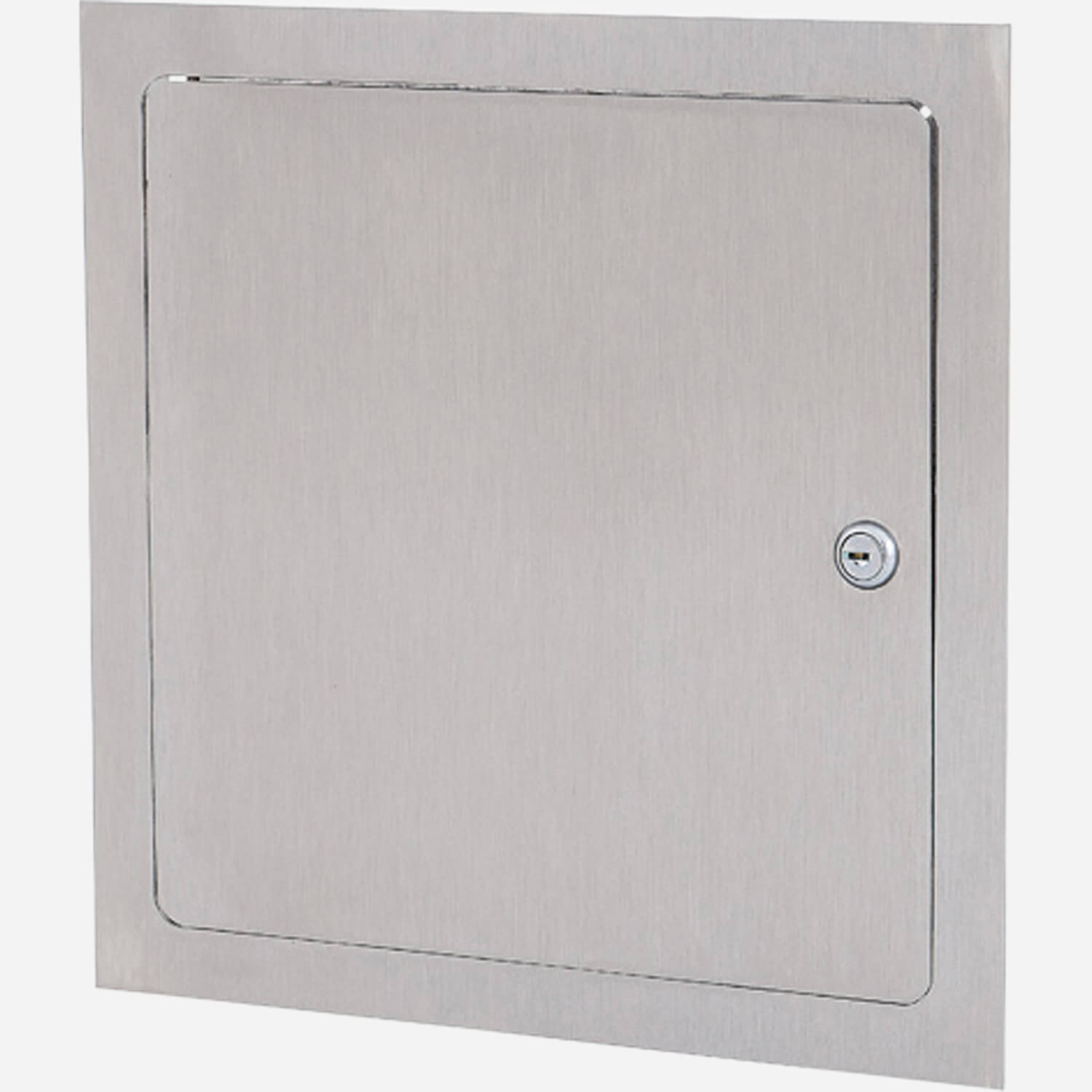

Material	Galvannealed Steel, Stainless Steel (Option -SS), 14-Gauge Galvannealed Steel
Latching System	Screwdriver Latch (Option -SDL), Allen Key Latch (Option -AKL), Cylinder Key Lock (Option -CL), T-Handle (Option -TH), Cylinder Lock with Dust Shutter (Option -CLD), Mortise Cylinder Lock (Option -MLP)

Options

Miscellaneous

	Image	Model	Description	Downloads
		Option AKL	Allen Key Latch

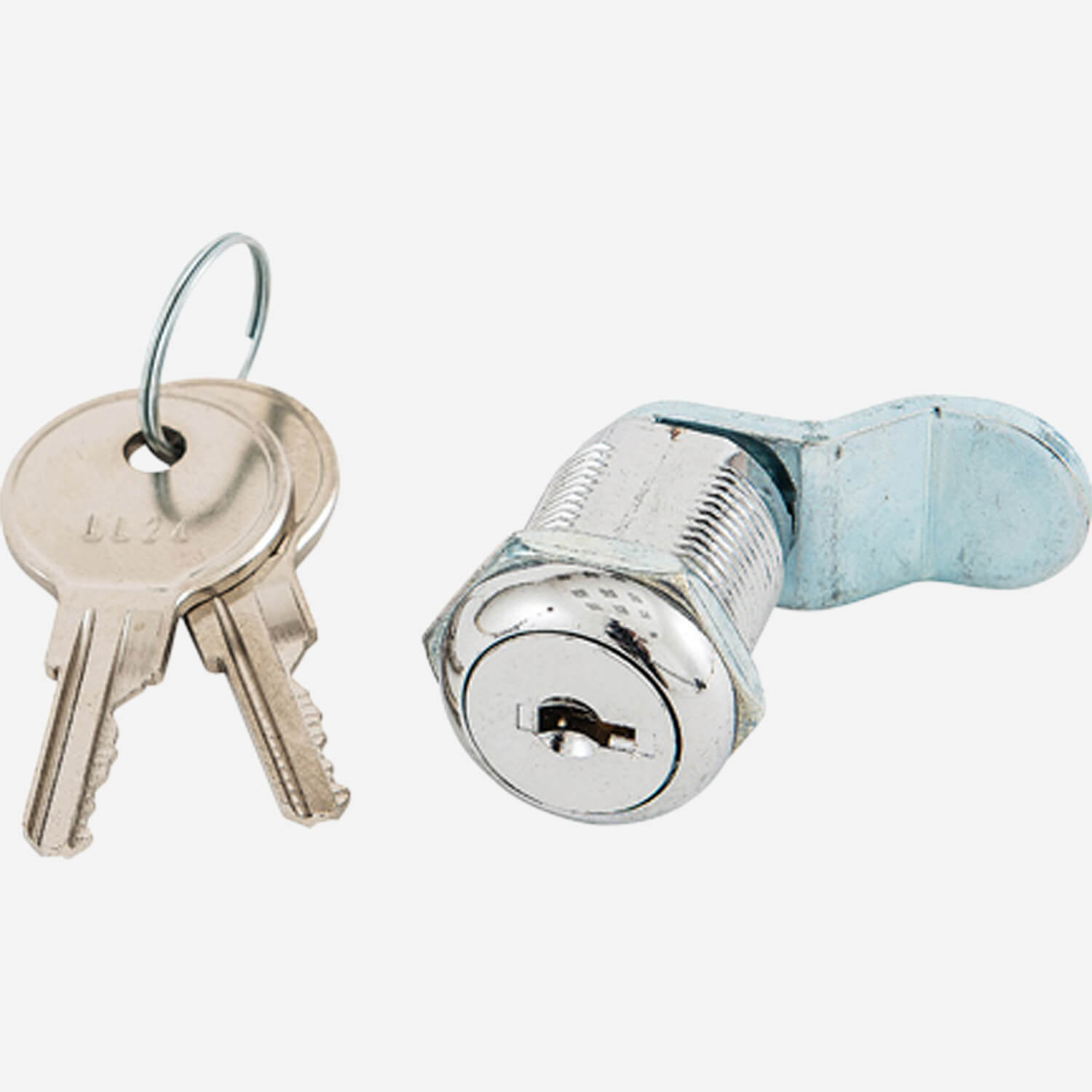

		Option CL	Cylinder Lock
		Option CLD	Cylinder Lock with Dust Shutter
		Option MAS	Masonry Anchor Straps
		Option MLP	Mortise Lock Prep

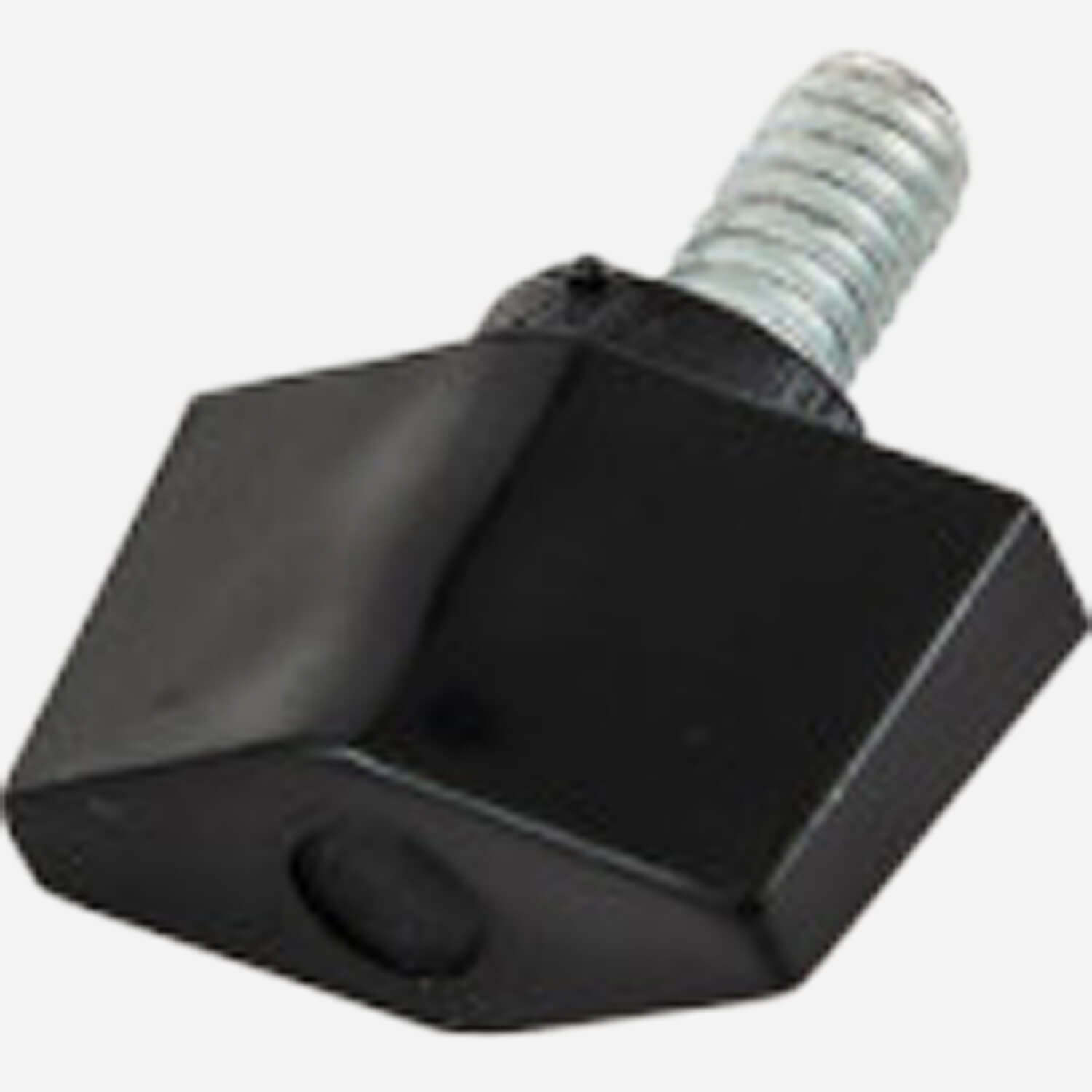

		Option TH	T-Handle

Related Figure Numbers

Model	Description
DW6x6	6 x 6 Inch Nominal Size
DW8x8	8 x 8 Inch Nominal Size
DW8x12	8 x 12 Inch Nominal Size
DW10x10	10 x 10 Inch Nominal Size
DW12x12	12 x 12 Inch Nominal Size
DW12x16	12 x 16 Inch Nominal Size
DW12x18	12 x 18 Inch Nominal Size
DW10X20	10 x 20 Inch Nominal Size
DW14x14	14 x 14 Inch Nominal Size
DW15x15	15 x 15 Inch Nominal Size
DW16x16	16 x 16 Inch Nominal Size
DW16x20	16 x 20 Inch Nominal Size
DW16x24	16 x 24 Inch Nominal Size
DW18x18	18 x 18 Inch Nominal Size
DW18x24	18 x 24 Inch Nominal Size
DW18x36	18 x 36 Inch Nominal Size
DW20x20	20 x 20 Inch Nominal Size
DW20x24	20 x 24 Inch Nominal Size
DW20x30	20 x 30 Inch Nominal Size
DW22x22	22 x 22 Inch Nominal Size
DW22x30	22 x 30 Inch Nominal Size
DW24x24	24 x 24 Inch Nominal Size
DW24x30	24 x 30 Inch Nominal Size
DW24x36	24 x 36 Inch Nominal Size
DW24x48	24 x 48 Inch Nominal Size
DW30x30	30 x 30 Inch Nominal Size
DW32x32	32 x 32 Inch Nominal Size
DW36x36	36 x 36 Inch Nominal Size
DW36x48	36 x 48 Inch Nominal Size
DW22x36	22 x 36 Inch Nominal Size
DW12X20	12 x 20 Inch Nominal Size
DW12X36	12 x 36 Inch Nominal Size
DW30X48	30 x 48 Inch Nominal Size
DW30X60	30 x 60 Inch Nominal Size
DW30X72	30 x 72 Inch Nominal Size
