Exterior Door for Walls and Ceilings

Name: Exterior Door for Walls and Ceilings
Brand: Elmdor
SKU: ED Series

Find A Representative

Model ED Series

Submittal

Submittal ED Series Door (pdf)

Model ED Series

Exterior Door for Walls and Ceilings

Access door frame shall be fabricated from 16 gauge galvannealed steel with a prime coat finish and provided with bolt holes. Access door panel shall be fabricated from 16 gauge galvannealed steel with a prime coat finish. Door shall be filled with 1 inch thick, rigid foam insulation. Access door shall have a concealed hinge with dual purpose latch. Exterior latching shall be flush with door and operated by either a knurled knob or flush key. Finish shall be prime coat suitable for painting.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Submittals	Submittal ED Series Door (pdf)	Exterior Door for Walls and Ceilings	153 KB
Brochures/Flyers	MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	27 MB
Brochures/Flyers	MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	718 KB
Brochures/Flyers	Elmdor Access Doors Flyer (pdf)	Elmdor Access Doors Flyer (pdf)	399 KB
Catalog	Elmdor Submittal Field Reference Guide (pdf)	Submittal Field Reference Guide for Elmdor Access Doors Roof Hatches	3 MB
Brochures/Flyers	Elmdor Access Doors Product Brochure (pdf)	Elmdor Access Door Brochure	43 MB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Brand	Elmdor
Mount	Wall Mount, Ceiling Mount, External
Material	Galvannealed Steel, Stainless Steel (Option -SS), Galvanized Drywall Bead (Option -GB)
Latching System	Knurl Knob, Cylinder Key Lock (Option -CL)

Details

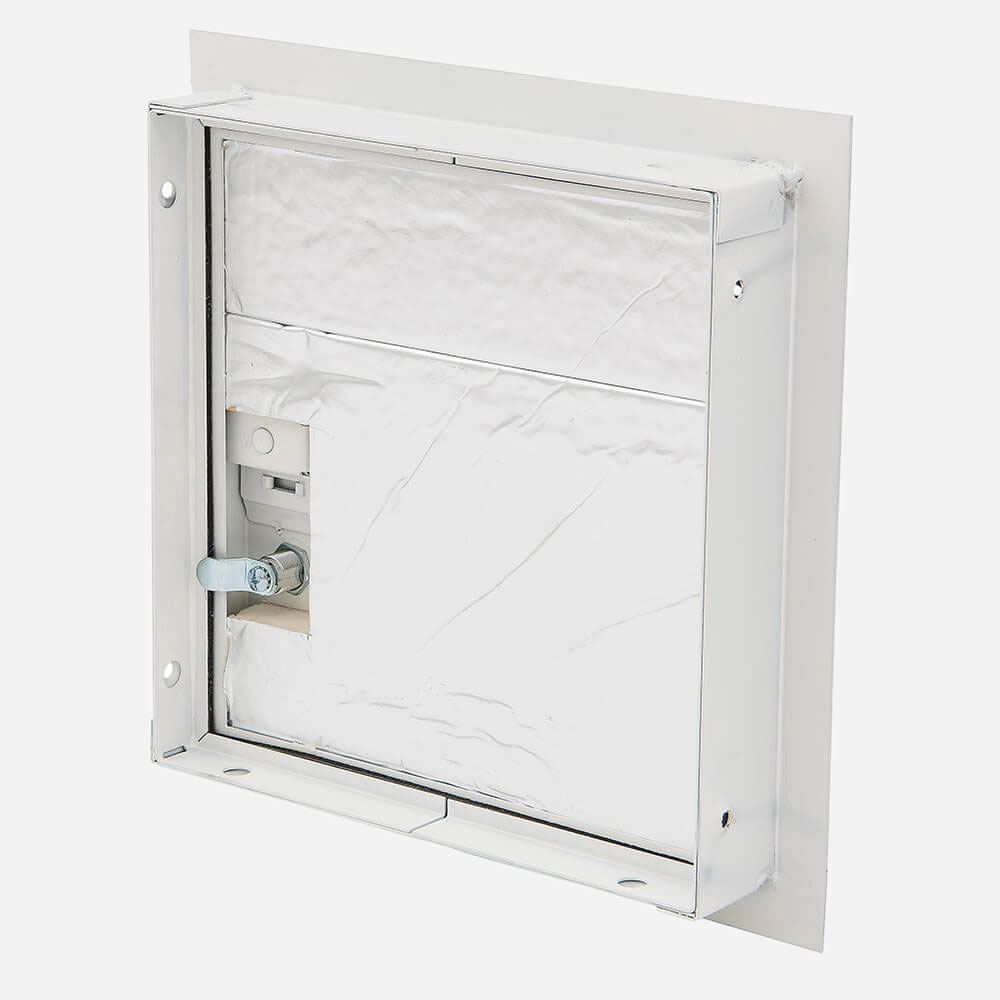

Elmdor Exterior Access Doors are manufactured and engineered to provide access to exterior applications ensuring years of protection against outdoor elements. Our new technology helps to manifest resistance to water and vapor. Our Exterior Door includes foam insulation and neoprene gasket on four sides.

Related Figure Numbers

Model	Description
ED12x12	12 x 12 Inch Nominal Size
ED14x14	14 x 14 Inch Nominal Size
ED18x18	18 x 18 Inch Nominal Size
ED22x30	22 x 30 Inch Nominal Size
ED24x24	24 x 24 Inch Nominal Size
ED24x36	24 x 36 Inch Nominal Size
ED30x30	30 x 30 Inch Nominal Size
ED36x36	36 x 36 Inch Nominal Size
ED36x48	36 x 48 Inch Nominal Size
