Name: Fire-Rated Access Panels for Walls & Ceilings
Brand: Elmdor
SKU: FRC Series

Model FRC Series

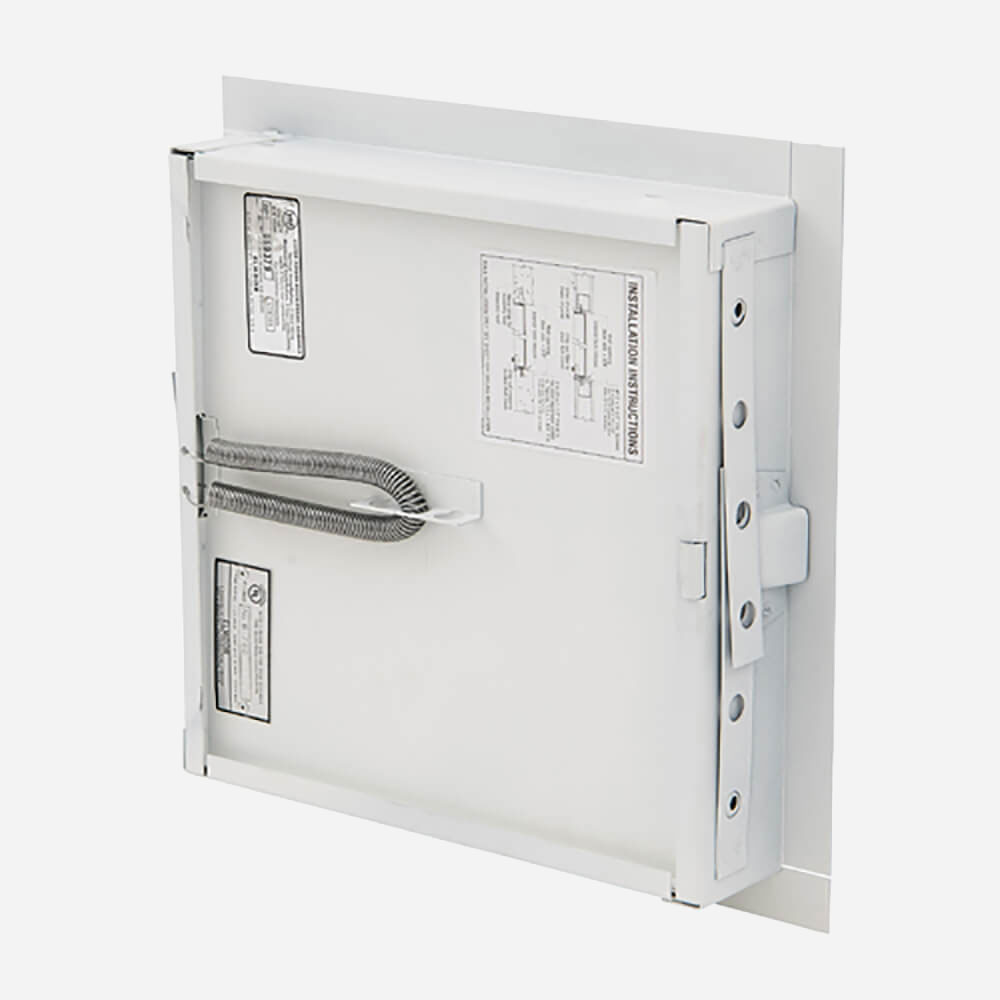

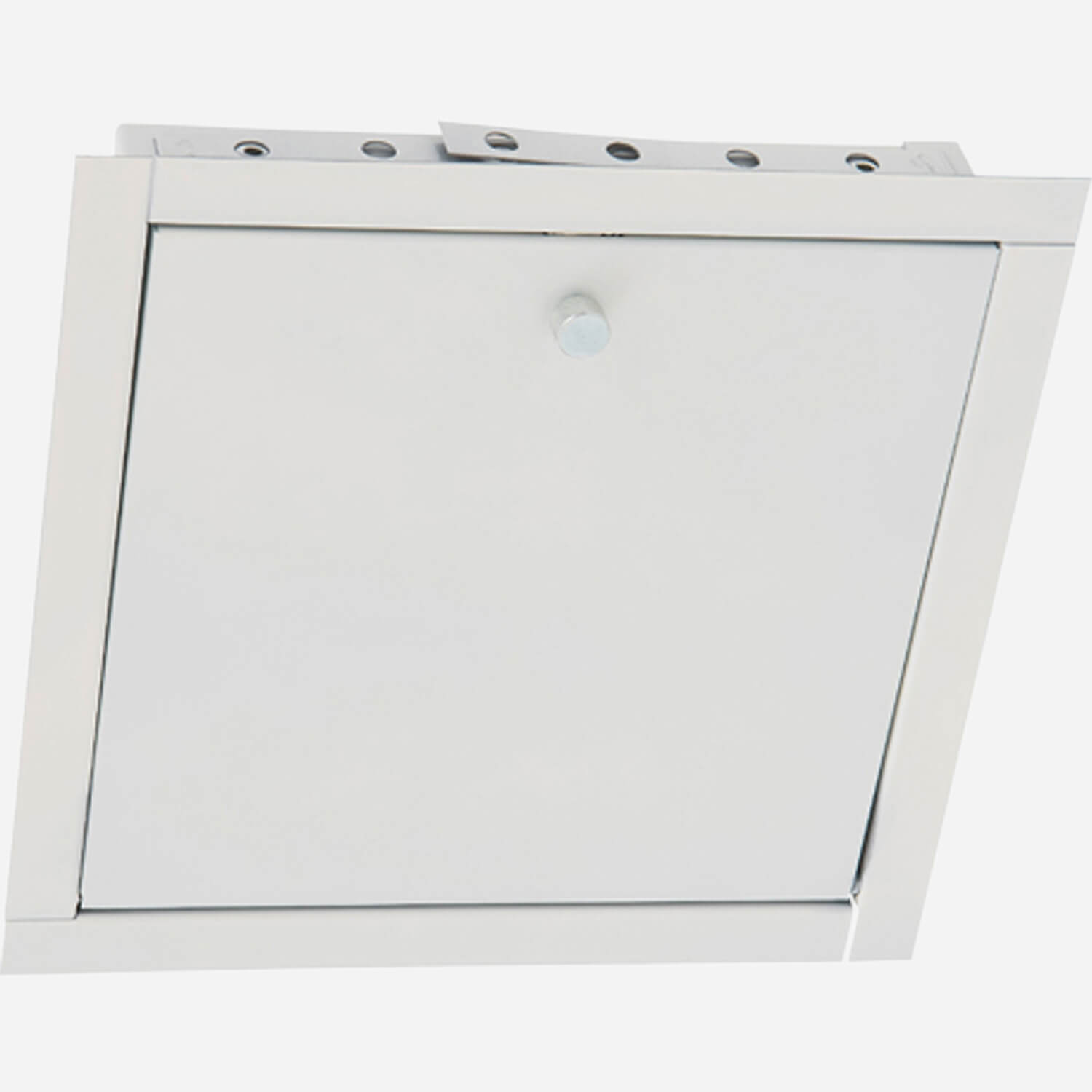

Fire-Rated Access Panels for Walls & Ceilings

These fire-rated access doors are designed for installation in both ceilings and walls. See the FR Series for wall-only applications.

FRC Series fire-rated access doors for ceilings and walls include the following features:

20-gauge, galvannealed steel door, filled with 2" fire-rated insulation
16-gauge, galvannealed steel frame with masonry anchors and bolt holes
White prime coat finish suitable for painting

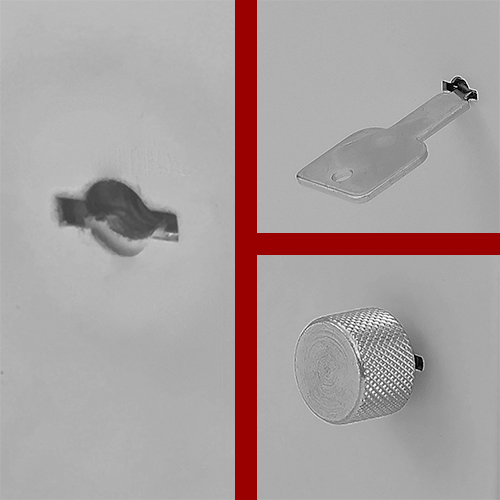

Recessed, universal self-latching bolt, operated by knurled knob or flush key
Heavy-duty spring to provide positive latching when closed
Self closing with interior latch release to enable opening from the inside
Concealed hinge

FRC Series access doors are fire rated by Underwriters Laboratories, Inc., for 1-1/2 hours, “B” label in walls, meets ANSI/UL 10B standard; Warnock Hersey for 3 hours in ceilings and 2 hours in walls; Canadian code CAN/ULC S104 for 2 hours in walls.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Installation Instructions	Installing FRC Door (pdf)	Installing FRC Door	54 KB
Submittals	Submittal FRC Series Door (pdf)	Fire-Rated Access Panels for Walls & Ceilings	169 KB
Brochures/Flyers	MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	27 MB
Brochures/Flyers	MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	718 KB
Brochures/Flyers	Kwik Ship® Brands: Brochure (pdf)	Kwik Ship Brands are a new way to order products. These standardized items are stocked locally, replenished weekly, and available for quick delivery, ensuring you get what you need with minimal delay.	7 MB
Brochures/Flyers	Kwik Ship® Brands: Commercial Engineering Approval Form	Kwik Ship® Brands: Commercial Engineering Approval Form	2 MB
Brochures/Flyers	Elmdor Access Doors Flyer (pdf)	Elmdor Access Doors Flyer (pdf)	399 KB
Brochures/Flyers	Kwik Ship® Brands: Elmdor (pdf)	Kwik Ship® Brands: Elmdor (pdf)	1 MB
Catalog	Elmdor Submittal Field Reference Guide (pdf)	Submittal Field Reference Guide for Elmdor Access Doors Roof Hatches	3 MB
Brochures/Flyers	Elmdor Access Doors Product Brochure (pdf)	Elmdor Access Door Brochure	43 MB
Cross References	Elmdor Kwik Ship® Visual Competitive Cross Ref - Access Doors (pdf)	Elmdor Kwik-Ship® Access Doors vs Acudor, Karp, Cendrex [DW_PC-SDL, DW_SS-SDL, DWB_PC-SDL, FR_PC-RTL, FRC_PC-DUL, Options AKL, CL, CLD, GB, MAS, MLP, TH] L1001782 7/2026	357 KB
BIM/CAD/Revit	FRC-DUL Access Doors (rfa)	Fire-Rated Access Panels for Walls & Ceilings with Standard Exterior Latch - dual purpose lock that features a knurled knob and key operation. Drawings are shown in either ceiling or wall applications [FRC8X8PC-DUL, FRC10X10PC-DUL, FRC12X12PC-DUL, FRC12X12PC-DUL/GB, FRC14X14PC-DUL, FRC14X14PC-DUL/GB, FRC16X16PC-DUL, FRC18X18PC-DUL, FRC18X24PC-DUL, FRC20X20PC-DUL, FRC22X30PC-DUL, FRC22X36PC-DUL, FRC24X24PC-DUL, FRC24X36PC-DUL]	560 KB
BIM/CAD/Revit	FRC-DUL Access Doors (dwg/zip)	Fire-Rated Access Panels for Walls & Ceilings with Standard Exterior Latch - dual purpose lock that features a knurled knob and key operation. Drawings are shown in either ceiling or wall applications [FRC8X8PC-DUL, FRC10X10PC-DUL, FRC12X12PC-DUL, FRC12X12PC-DUL/GB, FRC14X14PC-DUL, FRC14X14PC-DUL/GB, FRC16X16PC-DUL, FRC18X18PC-DUL, FRC18X24PC-DUL, FRC20X20PC-DUL, FRC22X30PC-DUL, FRC22X36PC-DUL, FRC24X24PC-DUL, FRC24X36PC-DUL]	1 MB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Brand	Elmdor
Mount	Ceiling Mount, Wall Mount
Material	Galvannealed Steel, Stainless Steel (Option -SS), Galvanized Drywall Bead (Option -GB)

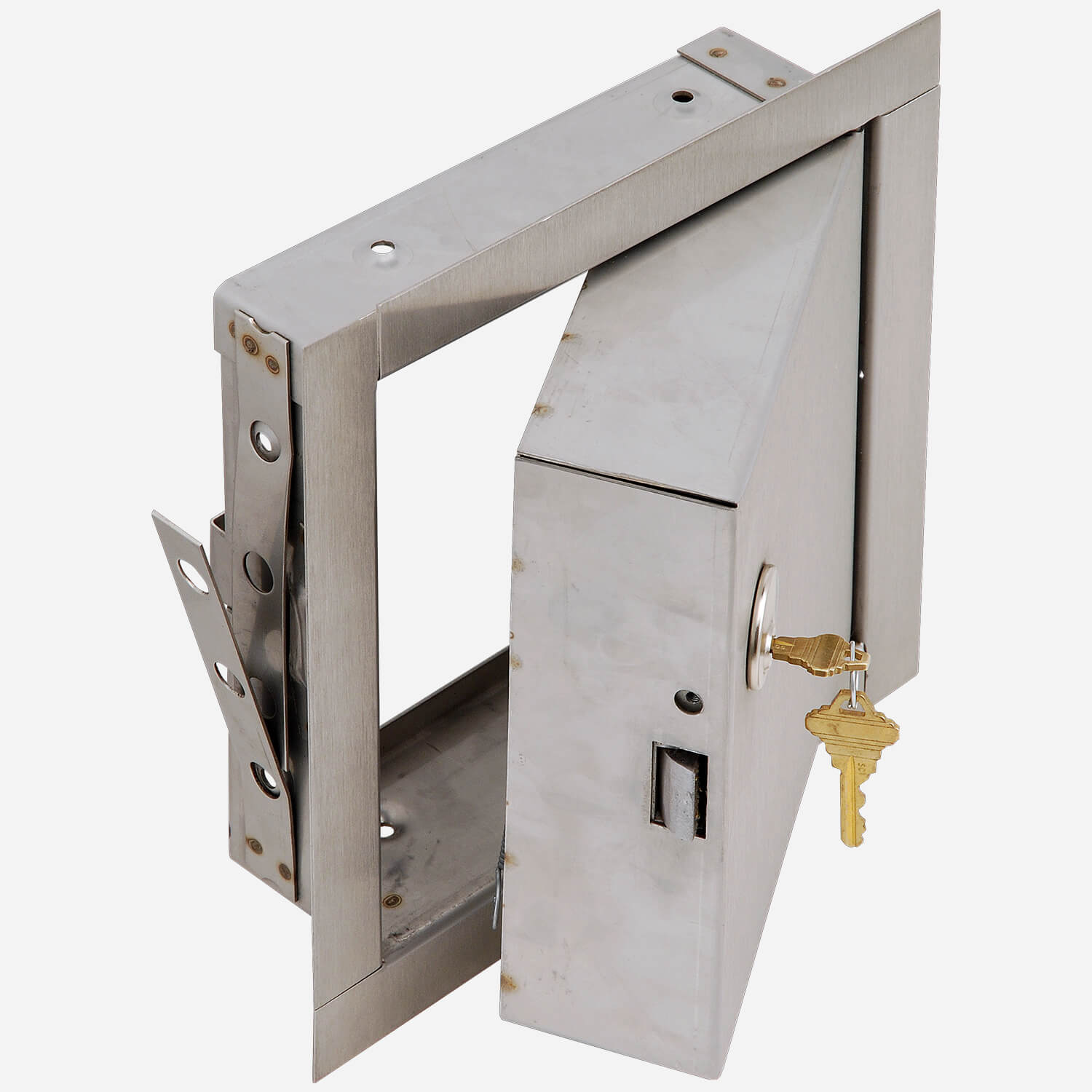

Latching System	Knurl Knob, Flush Key, Interior Latch Release, Mortise Cylinder Lock (Option -MLP)
Additional Benefits	Fire Rated

Related Figure Numbers

Model	Description
FRC8x8	8 x 8 Inch Nominal Size
FRC10x10	10 x 10 Inch Nominal Size
FRC12x12	12 x 12 Inch Nominal Size
FRC14x14	14 x 14 Inch Nominal Size
FRC16x16	16 x 16 Inch Nominal Size
FRC18x18	18 x 18 Inch Nominal Size
FRC20x20	20 x 20 Inch Nominal Size
FRC22x30	22 x 30 Inch Nominal Size
FRC22x36	22 x 36 Inch Nominal Size
FRC24x24	24 x 24 Inch Nominal Size
FRC24x36	24 x 36 Inch Nominal Size
