Model SMP Series

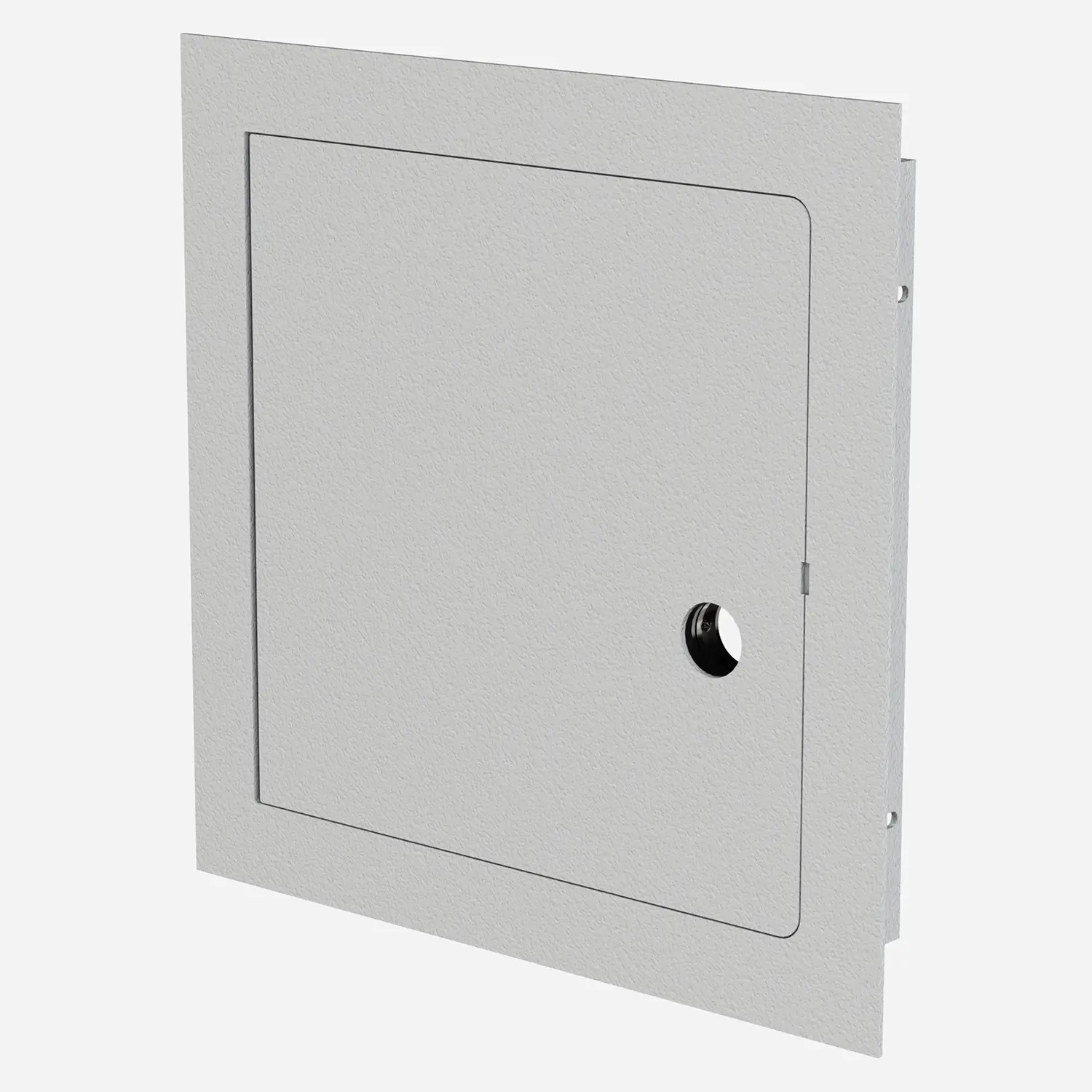

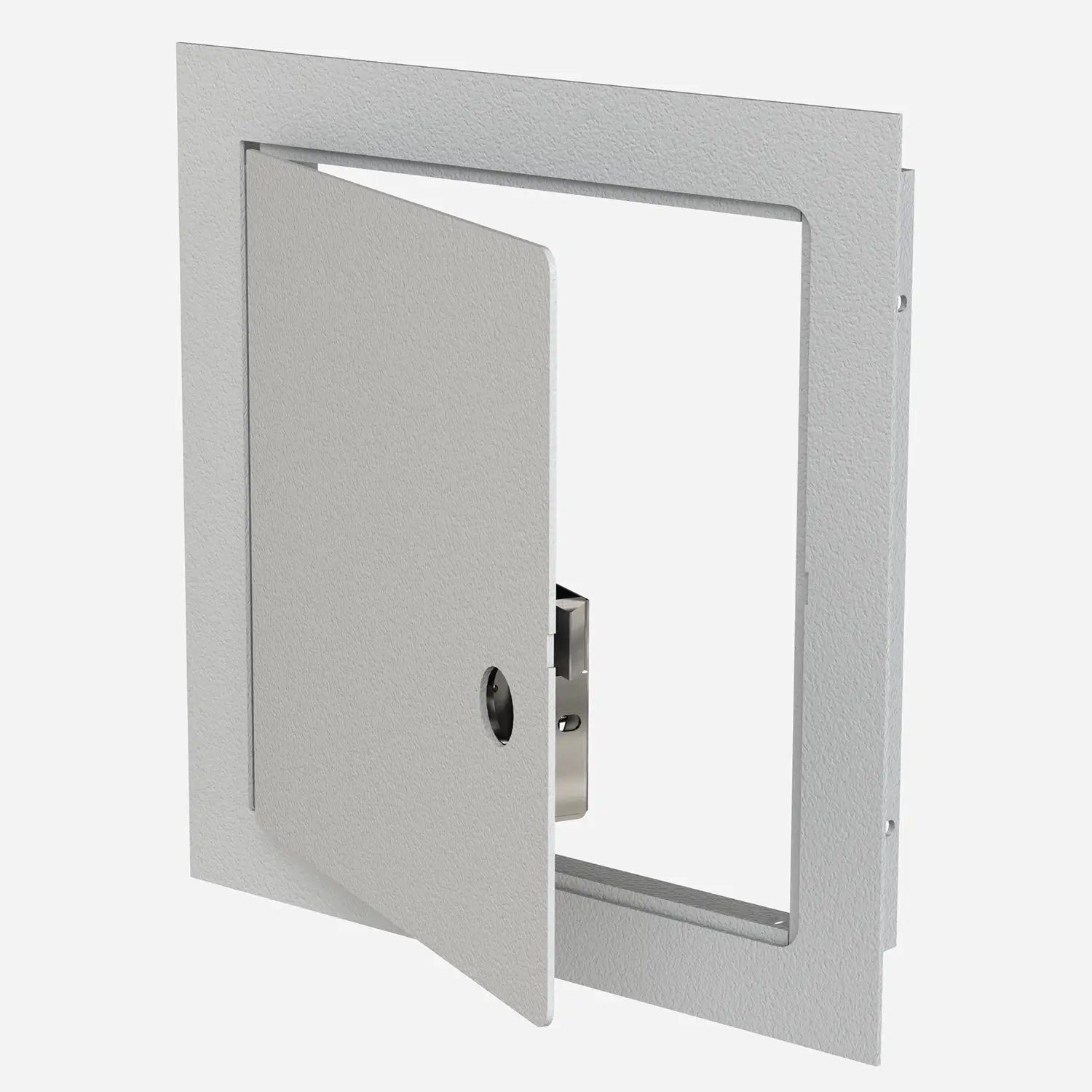

Medium Security Prepped Access Door
Medium Security Prepped Access Doors are ideally suited for new installations or for remodeling detention centers, behavioral health facilities, and schools.
The door is fabricated from 12-gauge, galvannealed steel with a white prime-coat finish.
The frame is fabricated from 12-gauge, galvannealed steel with a white prime-coat finish and provided
with bolt holes.

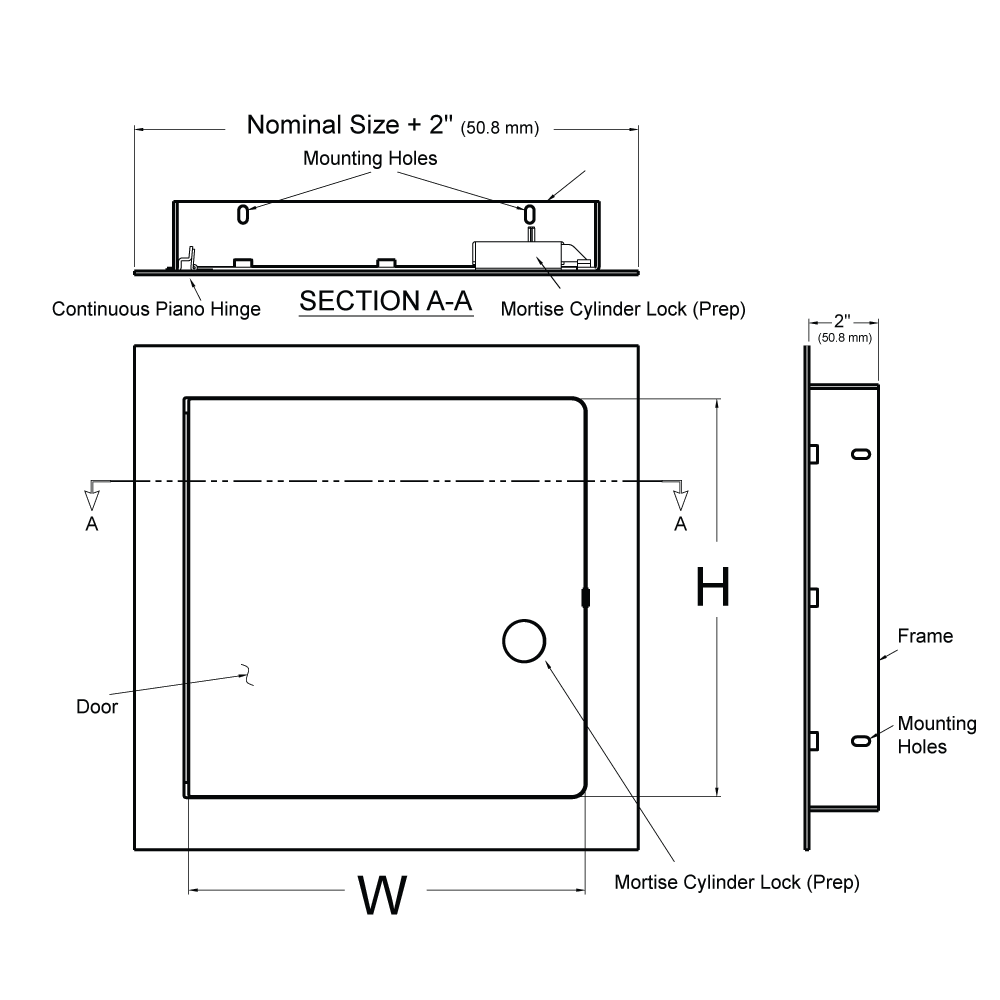

A Piano Hinge is continuous and concealed.
The door is provided with a Mortise Cylinder Lock (prep) as standard.
Finish is a white prime coat.
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | Medium Security Prepped Access Door [SMP 12" x 12", SMP 16" x 16", SMP 18" x 18", SMP 24" x 24", SMP 24" x 36", SMP 36" x 36"] | 155 KB |
Specifications
| Brand | Elmdor |
| Mount | Wall Mount |
| Material | Galvannealed Steel, Stainless Steel (Option -SS) |
| Latching System | Mortise Cylinder Lock |
| Additional Benefits | Contains Recycled Material, Recyclable |
Models
| Nominal Door Size (W x H) |
Wall Opening inches (mm) |
Latch(es) | Weight lbs (kg) |
| SMP 12" x 12" | 12.5 x 12.5 (318 x 318) | 1 | 16 (7.26) |
| SMP 16" x 16" | 16.5 x 16.5 (419 x 419) | 2 | 25 (11.34) |
| SMP 18" x 18" | 18.5 x 18.5 (470 x 470) | 2 | 30 (13.61) |
| SMP 24" x 24" |
24.5 x 24.5 (622 x 622) |
4 | 49 (22.23) |
| SMP 24" x 36" | 24.5 x 36.5 (622 x 927) | 5 | 70 (31.75) |
| SMP 36" x 36" | 36.5 x 36.5 (927 x 927) | 5 | 100 (45.36) |
