Medium Security Prepped Access Door

Name: Medium Security Prepped Access Door
Brand: Elmdor
SKU: SMP Series

Find A Representative

Model SMP Series

Submittal

Submittal SMP Series Access Door (pdf)

Model SMP Series

Medium Security Prepped Access Door

Medium Security Prepped Access Doors are ideally suited for new installations or for remodeling detention centers, behavioral health facilities, and schools.

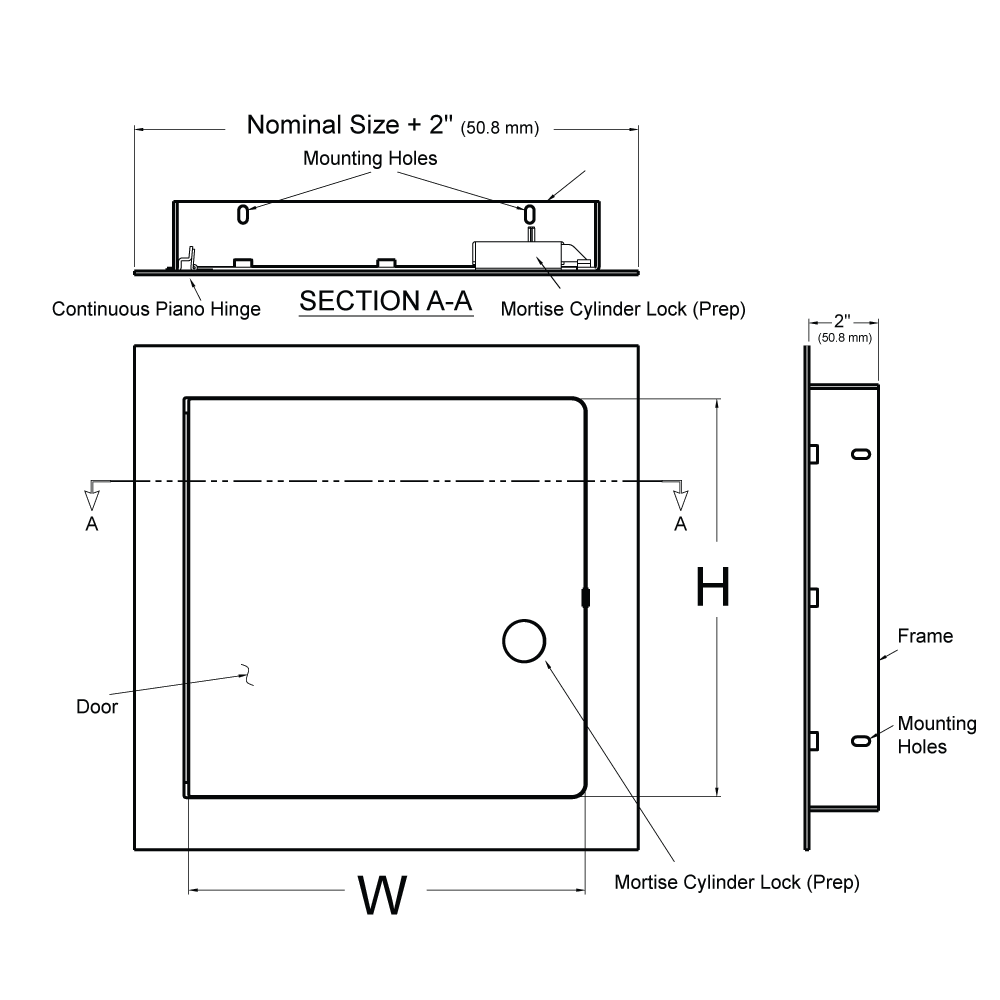

The door is fabricated from 12-gauge, galvannealed steel with a white prime-coat finish.

The frame is fabricated from 12-gauge, galvannealed steel with a white prime-coat finish and provided
with bolt holes.

A Piano Hinge is continuous and concealed.

The door is provided with a Mortise Cylinder Lock (prep) as standard.

Finish is a white prime coat.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

	Resource Type	Title	Description	File Size	Action
	Submittals	Submittal SMP Series Access Door (pdf)	Medium Security Prepped Access Door [SMP 12" x 12", SMP 16" x 16", SMP 18" x 18", SMP 24" x 24", SMP 24" x 36", SMP 36" x 36"]	155 KB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Brand	Elmdor
Mount	Wall Mount
Material	Galvannealed Steel, Stainless Steel (Option -SS)
Latching System	Mortise Cylinder Lock

Models

Nominal Door Size (W x H)	Wall Opening inches (mm)	Latch(es)	Weight lbs (kg)
SMP 12" x 12"	12.5 x 12.5 (318 x 318)	1	16 (7.26)
SMP 16" x 16"	16.5 x 16.5 (419 x 419)	2	25 (11.34)
SMP 18" x 18"	18.5 x 18.5 (470 x 470)	2	30 (13.61)
SMP 24" x 24"	24.5 x 24.5 (622 x 622)	4	49 (22.23)
SMP 24" x 36"	24.5 x 36.5 (622 x 927)	5	70 (31.75)
SMP 36" x 36"	36.5 x 36.5 (927 x 927)	5	100 (45.36)
