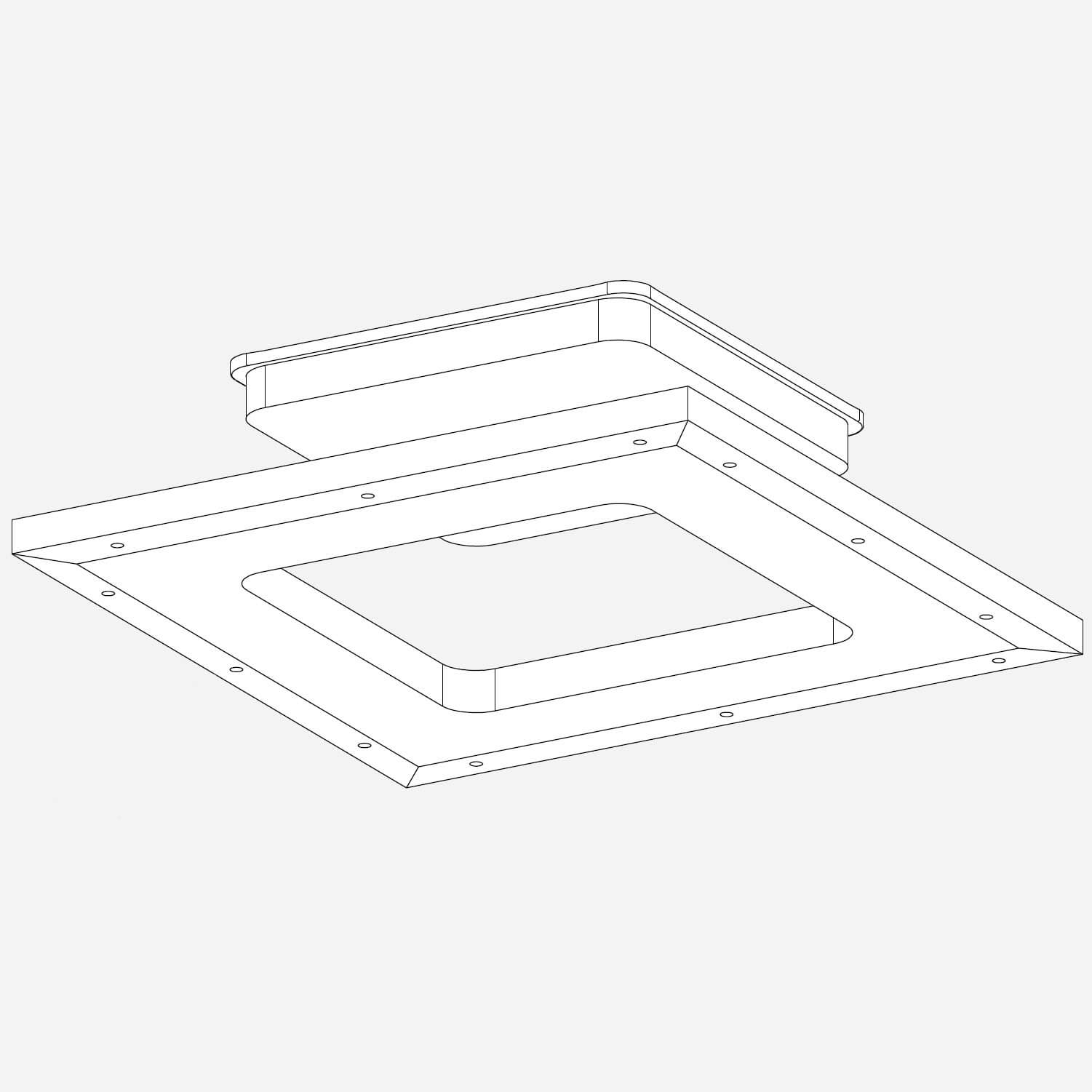

Covert Access Door
Covert Access Doors are designed to be architecturally pleasing with a design which allows the door and frame to blend seamlessly with the gypsum ceiling. With a tapered edge for joint tape, they are easily textured, light weight and will not crack or shrink.
Door and Frame are fabricated from solid surface material and conforms with ANSI/CPA SS-1 Performance Standard. Color is OCC11M Blanco Matte. Can be painted.
Flange has depressions for screw placement and is tapered for joint compound application. Wall mounting hardware is provided by installer to suit wall type.
Specifications
| Brand | Elmdor |
| Mount | Ceiling Mount |
| Material | Solid Surface |
| Additional Benefits | Recyclable |
Models
CD 12x12 Nominal Door Size | 12" x 12" Overal Frame Size | 16" x 16" Rough Opening | 18" x 18" Weight | 13 lbs.
CD 16x16 Nominal Door Size | 16" x 16" Overall Frame Size | 20" x 20" Rough Opening | 22" x 22" Weight | 19 lbs.
CD 18x18 Nominal Door Size | 18" x 18" Overalll Frame Size | 22" x 22" Rough Opening | 24" x 24" Weight | 23 lbs.
CD 24x24 Nominal Door Size | 24" x 24" Overall Frame Size | 28" x 28" Rough Opening | 30" x 30" Weight | 35 lbs.
