Specimen Pass-Thru Cabinet

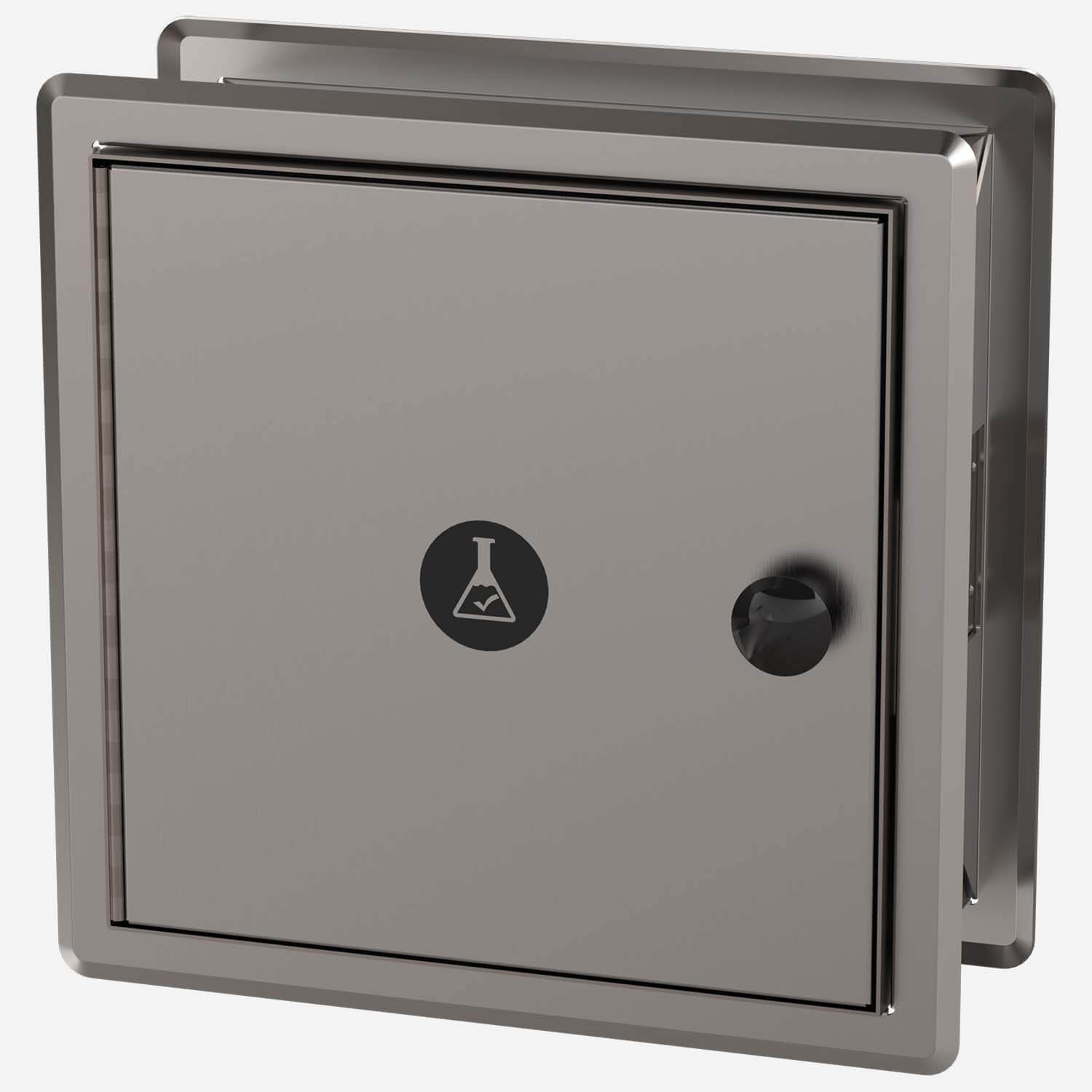

The Elmdor® Specimen Pass-Thru is a recessed Cabinet to allow Laboratory access to Patient specimen samples, and provides privacy with a clean, finished look.
Recessed In-Wall Cabinet, Door and Frame are 16 gauge (0.063) type 304 stainless steel with de-burred edges. Unique assembly allows Recessed Box to adjust to suit a Wall thickness from 3" (76 mm) to 5-1/2" (140 mm). Assembly is provided in stainless steel with exposed surfaces polished to a #4 satin finish.

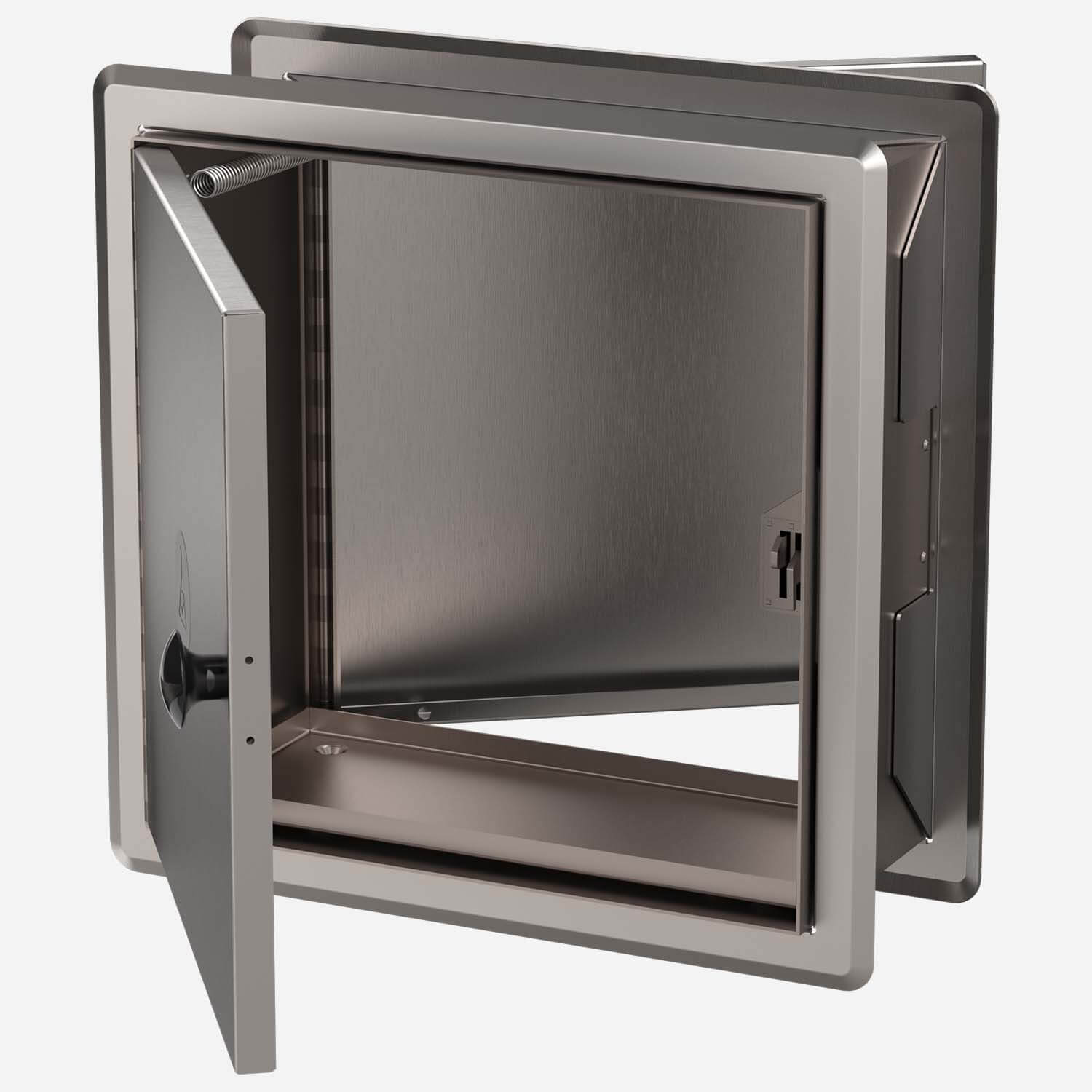

Self-Closing Doors include Laboratory Logo, a full length, Continuous Stainless Steel Piano Hinge and Extension Spring Closing Mechanism. Design allows only one Door at a time to open to provide Patient privacy. Doors include an large, easy to grasp, Black Phenolic Handle.
Specimen Tray is watertight and includes a raised Bottom for improved infectious control and may be removed for cleaning. Tray is heavy gauge type 304 stainless steel.
Downloads
Specifications
| Brand | Elmdor |
| Material | Stainless Steel |
| Mount | Recessed -double-sided |
| Latching System | Extension Spring Closing Mechanism |
| Additional Benefits | Contains Recycled Material, Recyclable |
Models
SC Cabinet
Door Side-to Side | 12-1/2" (317 mm)
Door Height | 12-1/4" (311 mm)
Overall Side-to-Side | 14-1/2" (368 mm)
Overall Height | 14-1/4" (362 mm)
Accommodates Wall Thickness | 3" (76 mm) to 5-1/2" (140 mm)
