Name: Roof Access Hatch
Brand: Elmdor
SKU: RAH Series

Model RAH Series

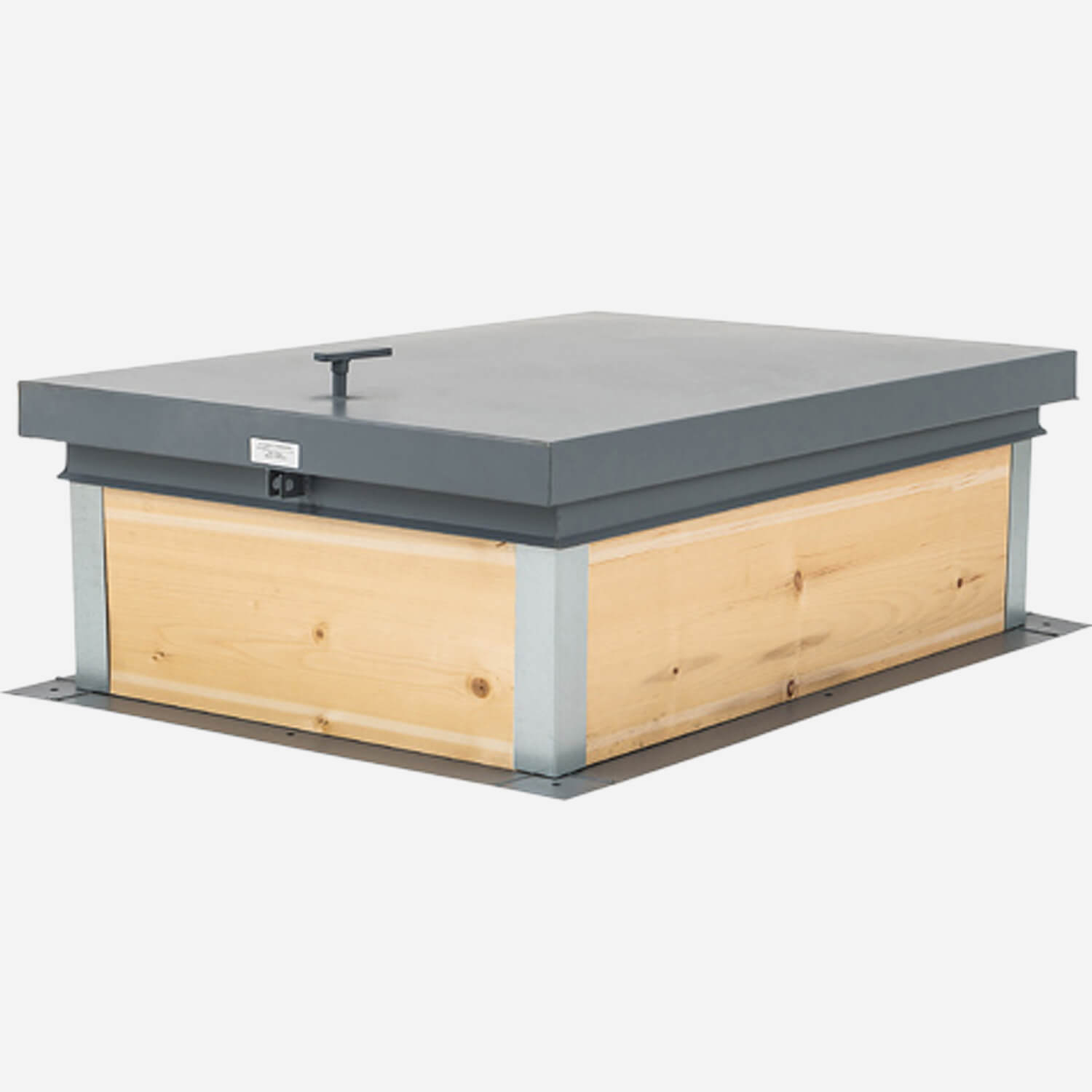

Roof Access Hatch

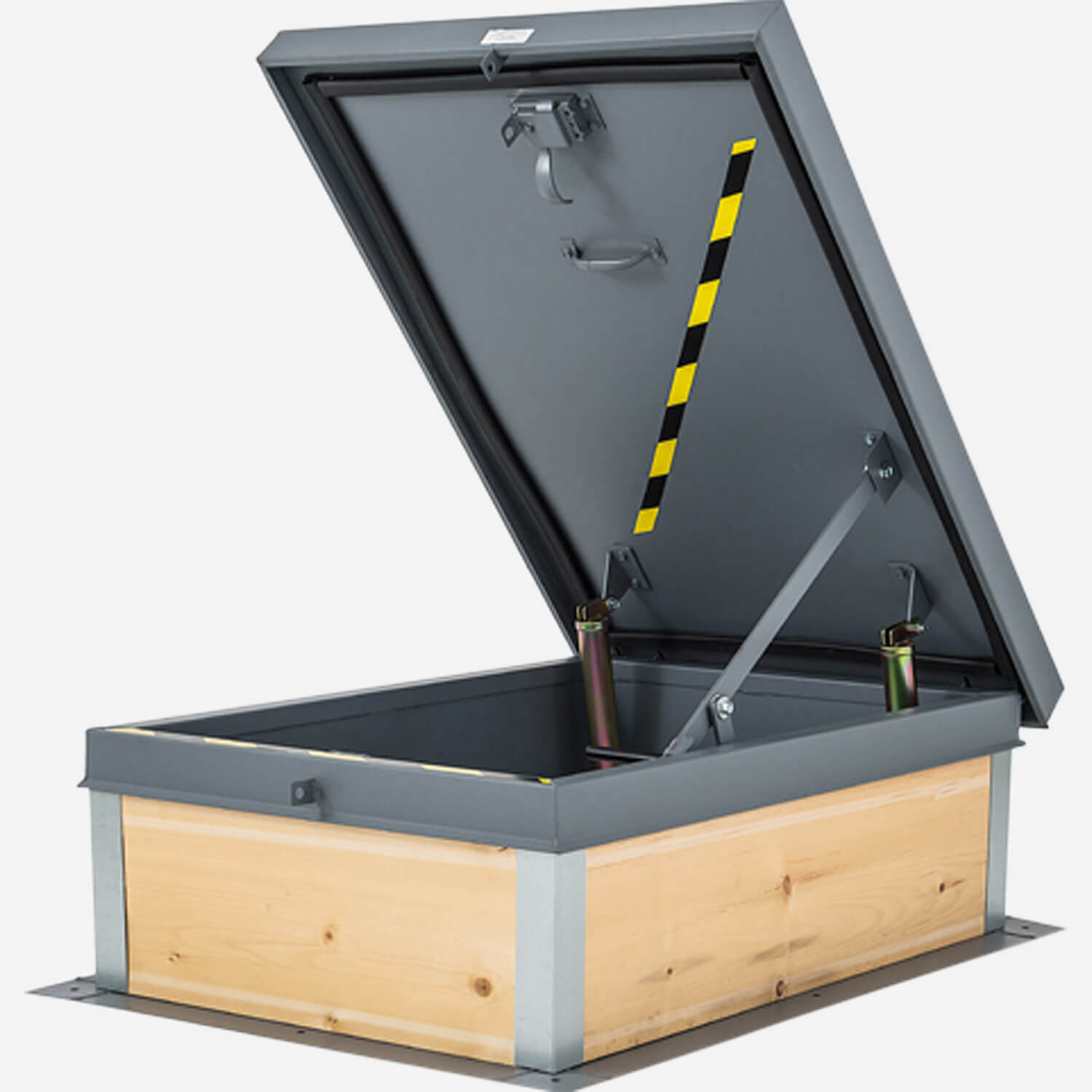

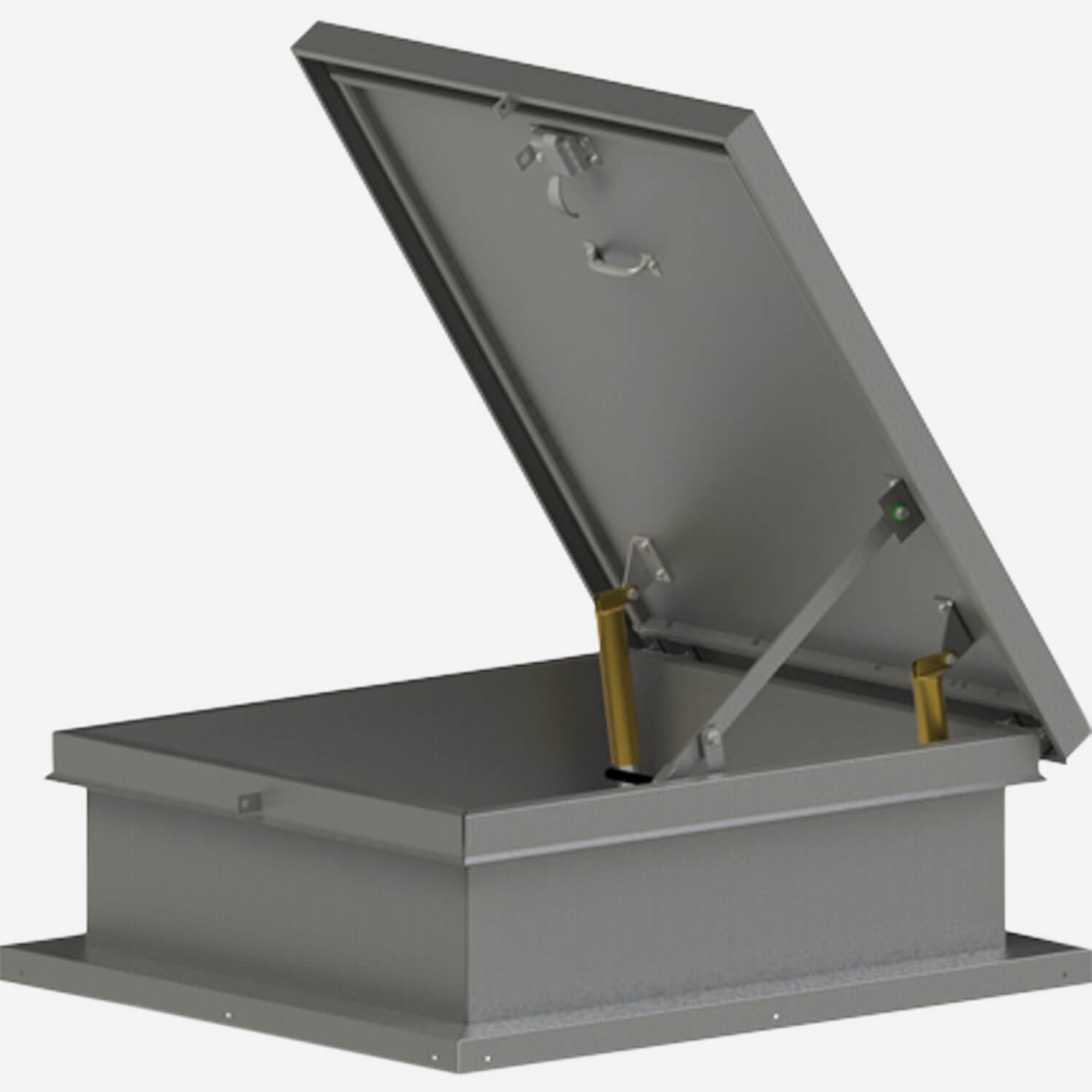

Roof access hatch shall be fabricated from 14 gauge, A60 galvannealed steel on both curb and cover. Compression springs encased in zinc-plated telescopic tubes shall be provided for the smooth operation of the cover. An automatic hold-open arm with vinyl grip will be furnished. Latching shall include both interior and exterior handles with provisions for a padlock both inside and out.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Parts	Part 0650-310-199	Parts for Roof Access Hatch: Left Base Bracket	114 KB
Parts	Part 0650-311-199	Parts for Roof Access Hatch: Right Base Bracket	114 KB
Parts	Part 0650-361-001	Parts for Roof Access Hatch: Lock Box Assembly	104 KB
Parts	Part 0650-370-001	Parts for Roof Access Hatch: Arm & Guide Assembly	60 KB
Parts	Part 0650-380-001	Parts for Roof Access Hatch: Spring Assembly	57 KB

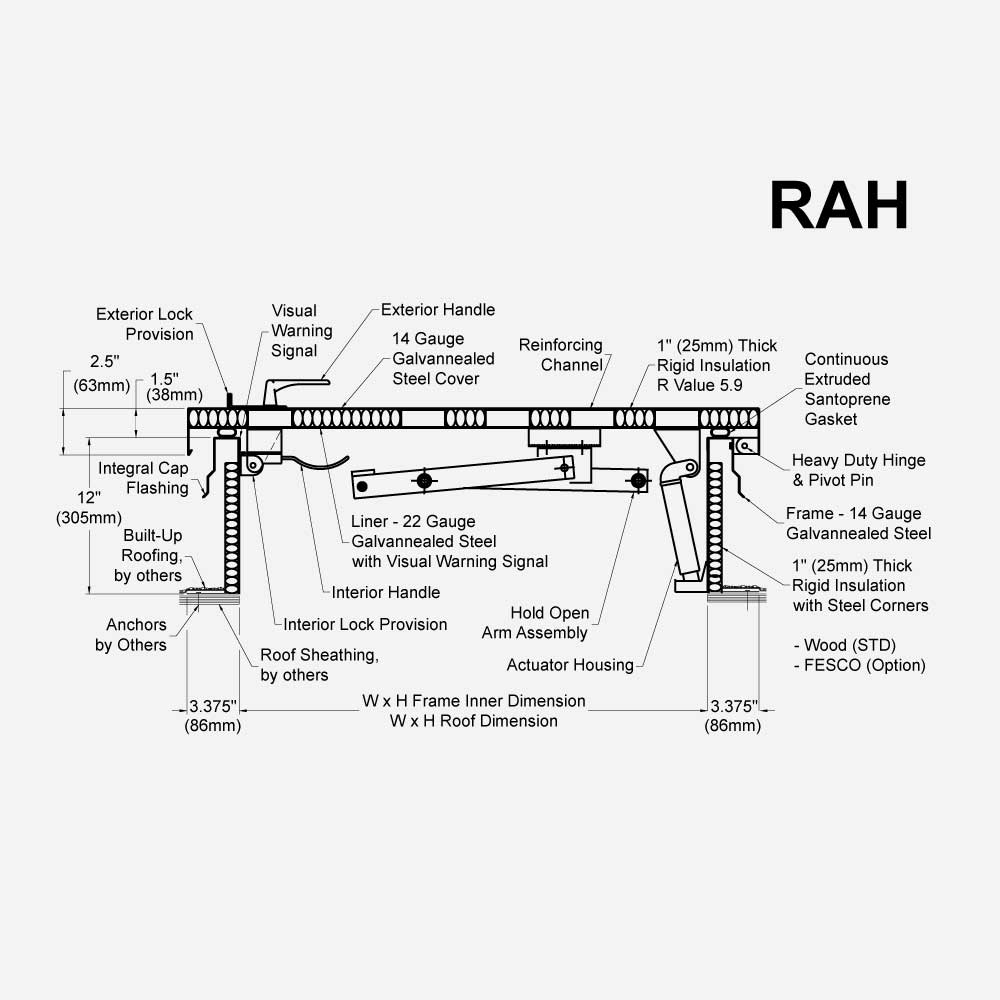

Submittals	Submittal RAH Roof Access Hatch (pdf)	Elmdor Roof Access Hatch - Standard Sizes: 24"x24", 24"x30", 24"x36", 30"x30", 30"x36", 30"x54", 30"x96", 36"x36", 36"x48", 48"x48"	611 KB

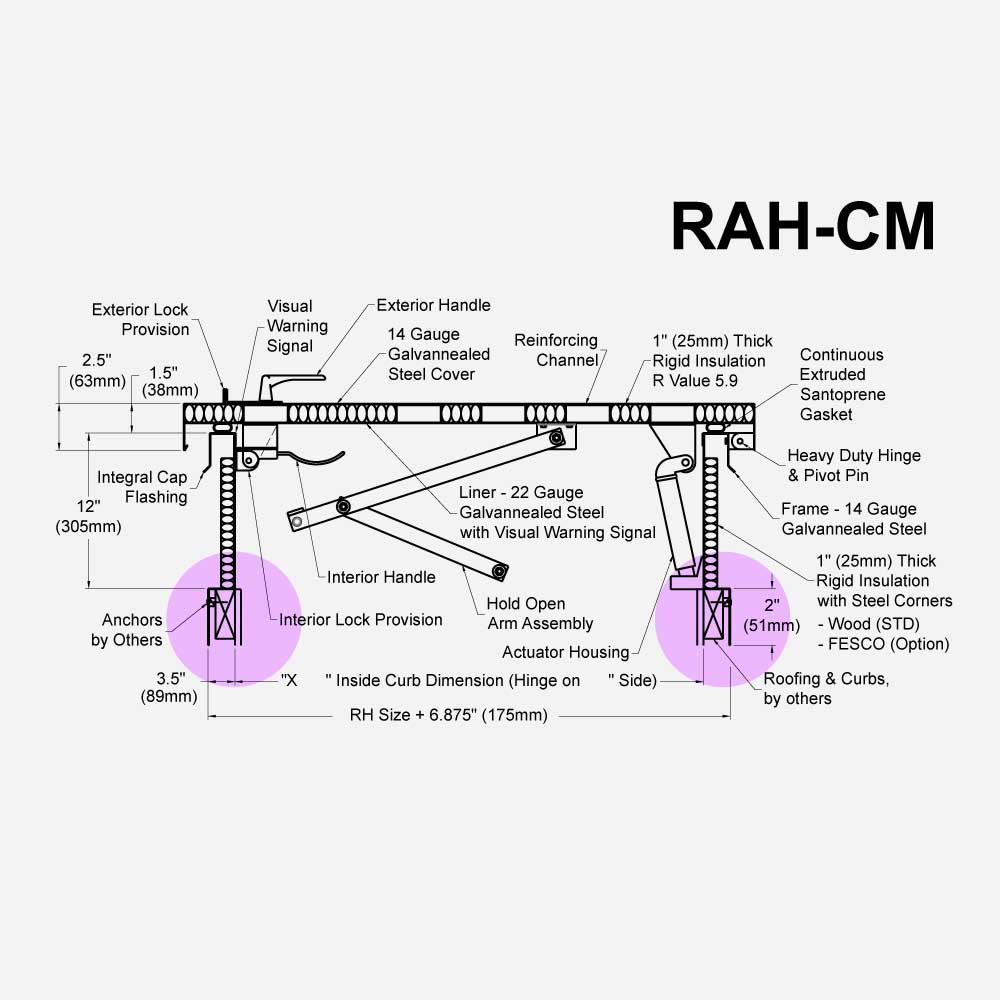

Submittals	Submittal RAH-CM Roof Access Hatch (pdf)	Elmdor Roof Access Hatch with 2" Mounting Flange for Curb Installation - Standard Sizes: 24"x24", 24"x30", 24"x36", 30"x30", 30"x36", 30"x54", 30"x96", 36"x36", 36"x48", 48"x48"	727 KB
Brochures/Flyers	Elmdor Roof Access Hatch Brochure (pdf)	Elmdor Roof Access Hatch Brochure (pdf)	5 MB
Brochures/Flyers	MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	27 MB
Brochures/Flyers	MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	718 KB
Brochures/Flyers	Elmdor Roof Access Hatch Flyer (pdf)	Elmdor Roof Access Hatch Flyer	833 KB
Catalog	Elmdor Submittal Field Reference Guide (pdf)	Submittal Field Reference Guide for Elmdor Access Doors Roof Hatches	3 MB
Brochures/Flyers	Elmdor Access Doors Product Brochure (pdf)	Elmdor Access Door Brochure	43 MB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Brand	Elmdor
Mount	Roof Mount, External
Material	14-Gauge Galvannealed Steel
Latching System	Exterior Handle, Interior Handle

Details

Roof Access Hatches are designed to provide convenient, cost saving access to the roofs of buildings, allowing for ladders and stair access to the roof from the interior of the building. Elmdor Roof Access Hatches are designed and engineered for durability and safety, with ease of installation. The Roof Access Hatch installs easily over the roof opening and is secured from the base flange to the roof.

Related Figure Numbers

Model	Description
E-2424-RAH	24 x 24 Inch Nominal Size
E-2430-RAH	24 x 30 Inch Nominal Size
E-2436-RAH	24 x 36 Inch Nominal Size
E-3036-RAH	30 x 36 Inch Nominal Size
E-3054-RAH	30 x 54 Inch Nominal Size
E-3648-RAH	36 x 48 Inch Nominal Size
E-3636-RAH	36 x 36 Inch Nominal Size
E-4848-RAH	48 x 48 Inch Nominal Size
E-3030-RAH	30 x 30 Inch Nominal Size
E-3096-RAH	30 x 96 Inch Nominal Size
